CR-C Multifunction Diesel Common Rail Injector Tester + S60H Nozzle Validator,Common Rail Injector Tester Tool
CR-C Common Rail Injector Tester +
Common rail diesel nozzle Injector tester S60H
About seller's shipping Method : Most of country we shipped by DHL,
it's fastest shipping method, so if you choose the " Seller's Shipping
Method ", and the goods will arrived soon
How to test a common rail Injector ?
Need two conditions:
1,Electrical pulse signal (CR-C Common Rail Injector Tester )
2, High pressure fuel (S60H Common rail diesel nozzle Injector tester)
As Shown below picture, it's the basic method.
PRODUCT 1:

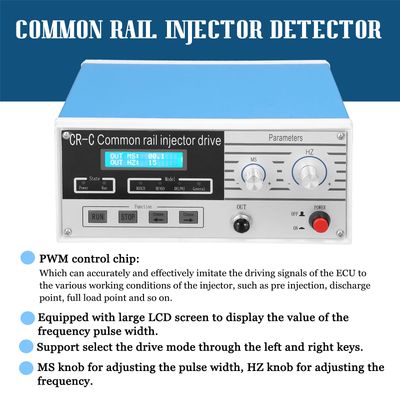

CR-C Common Rail Injector Tester
CR-C common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It's small size and light weight, could meet the requires from repairman on the simple device of testing.
Technical Parameters:
Produce Model: CR-C Common Rail Injector Tester
Testing Range: atomization, pilot, emission and full load condition.
Test Injectors: for Boscch, Densso, Delphii common rail injectors.
Working Voltage: AC220V/AC110
Working Temperature: -30C°--70C°
Size: 110*250*190mm
PRODUCT 2:
Adjustable Width: 10 MS
Common rail diesel nozzle Injector tester S60H
Diesel Injector Nozzle Pop Tester fuel injector nozzle tester with 0 - 400 BAR / 0 - 6000 PSI Dual Scale Gauge BOSCH injector checker is suitable for all common rail injector and mechanical injectors, auxiliary products have compression release valve, it can check the fuel injection conditions of various types of injector quickly and easily. It also can be used with common rail injector 118 solenoid valve tester to test various types of common rail injectors. The injector checker equipped with two different types of tubing. You can freely switch suitable for detecting the injector, it is a good choice to Initial inspection injector working state.
As we know driver common rail injector,not only need a tester but also need hight pressure fuel,
so we used a manul fuel pressure pump S60H as show in follow picture
1, the high pressure oil common rail injector directly or into the holder is connected to the common hand pressure calibrator.
2, according to the corresponding plug injector brand choice, will harness and injector connected up correctly.
3, according to the fuel injector brand, drive mode selecting corresponding, at this time can hear the injector solenoid valve suction armature "Pa, Pa" voice.
| Product Details | |
| Type: | Diesel Injection Nozzle Tester/Validator |
| Model No.: | S60H |
| Pressure Gauge: | 0-60Mpa or 0-8000 Psi |
| Function: | To adjust injection nozzle opening pressure and carry out leakage, spray pattern and chatter characteristic tests |
| Usage 1: | S60H tester only can test un-common-rail nozzle or injector working performance |
| Usage 2: | If need test common-rail nozzle or injector, S60H must work with common rail injector tester together |
| Application: | Diesel Injector Repair Tools |
| Advantage: | Durable, Light, easy to operate |
| Brand Name: | DYD or Neutral |
| Material: | Iron, Plastic |
| Color: | Black |
| Net weight: | 3.8Kgs/Set |
| Gross weight: | 5Kgs/Set |
| MOQ: | 1 Set |
| Carton Size: | 45.5(cm)*26(cm)*17(cm) |
| Packaging Details: | 1set/carton |
| Warranty: | 6 months |
| Shipping Way: | DHL, FedEx, UPS, TNT, EMS, ARAMEX, By Air, By Sea |
| Delivery Time: | About 2 working days after receiving payment |
| Payment Terms: | T/T, Western Union, MoneyGram, PayPal |
| Export Market: | South/North America, Europe, Mid East, Africa, Asia, Australia |
