Model NO.
BWJ-3
Condition
New
Model No.
Bwj-3
Max Load Capacity
3000kg
Table Speed
0.1~1rpm
Totating Motor
0.75kw
Turning Table Diameter
1400mm
Steel Plate Thickness
30mm
Customized
Yes
Lead Time
15 Days
Speed Adjustment
AC Frequency Converter Stepless Speed Adjustment
Welding for
Tank Pipe Flange Seam Welding Machine
Positioner Chuck
Optional
Tilt Motor Type
AC Motor
Positioner Type
Platform Fixed Welding Positioner
Turntable Heigh
515mm
Optional
Welding Manipulator,Welding Rotator
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Production Capacity
100PCS/Month
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.1-1rpm
Max Eccentricity Distance:
250mm
Voltage:
380V
Welding Tilter Type:
Flexible Combination

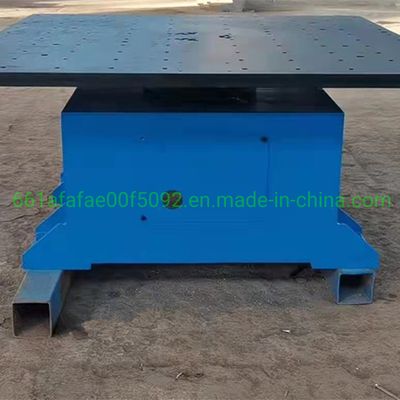

Automatic Industrial 1Ton 3Ton 5Ton tilting rotating turntable Welding positioners
The 360° rotary welding turntable produced by our company has a variety of load-bearing specifications (1T-30T), and different types of welding positioners can be configured according to customer needs.
The rotary table is equipped with a positioning block and a clamping device to keep the workpiece fixed when it rotates in the horizontal direction.
The 360° rotation of the Tilting Welding turntable adopts AC frequency conversion speed regulation. The speed range is large, the precision is high, and it can rotate according to the welding speed required by customers.
The use of the turret improves the quality of pipe flange elbow girth welding, reduces the labor intensity of welders and improves production efficiency.
This machine can cooperate with various automatic welding or manual welding to complete the horizontal butt joint of pipes and weld the end faces of pipes.
Specifications:
Notice:
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
The 360° rotary welding turntable produced by our company has a variety of load-bearing specifications (1T-30T), and different types of welding positioners can be configured according to customer needs.
The rotary table is equipped with a positioning block and a clamping device to keep the workpiece fixed when it rotates in the horizontal direction.
The 360° rotation of the Tilting Welding turntable adopts AC frequency conversion speed regulation. The speed range is large, the precision is high, and it can rotate according to the welding speed required by customers.
The use of the turret improves the quality of pipe flange elbow girth welding, reduces the labor intensity of welders and improves production efficiency.
This machine can cooperate with various automatic welding or manual welding to complete the horizontal butt joint of pipes and weld the end faces of pipes.
Specifications:
| Model | BWJ-1 | BWJ-2 | BWJ-3 | BWJ-5 | BWJ-10 | BWJ-20 | BWJ-30 |
| Loading weight | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg | 20000kg | 30000kg |
| Turntable diameter | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm | 2200mm |
| Turntable rotate speed | 0.1-1rpm | 0.1-1rpm | 0.1-1rpm | 0.05-0.5rpm | 0.05-0.5rpm | 0.04-0.4rpm | 0.04-0.4rpm |
| Rotate motor | 0.37kw | 0.55kw | 0.75kw | 1.1kw | 1.5kw | 3kw | 4kw |
| Eccentricity | 200mm | 250mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Turntable height | 415mm | 415mm | 515mm | 520mm | 600mm | 700mm | 750mm |
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
