Model NO.
BWJ-3
Condition
New
Input Voltage
110-440V
Horizontal Loading Capacity
2200 Lbs
Vertical Loading Capacity
1100 Lbs
Turntable Tilting Angle
0-90
Table Diameter
1200 mm
Worktable Height
Customized
Speed Regulation Methord
AC Frequency Conversion Stepless Speed Regulation
Tilting Speed
0.4rpm/Min
Rotate Motor
1.1 Kw
Tilt Motor
1.1 Kw
Warranty
1 Year
Suitable for
Pipe Flange Elbow Seam Welding Machine
Tilt Mode
Electric
Lead Time
3 Days
Self Locking Function
Yes
Transport Package
Standard Package
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.1-1rpm
Max Eccentricity Distance:
150mm
Tilting Angle:
0-90°
Voltage:
110V/220V

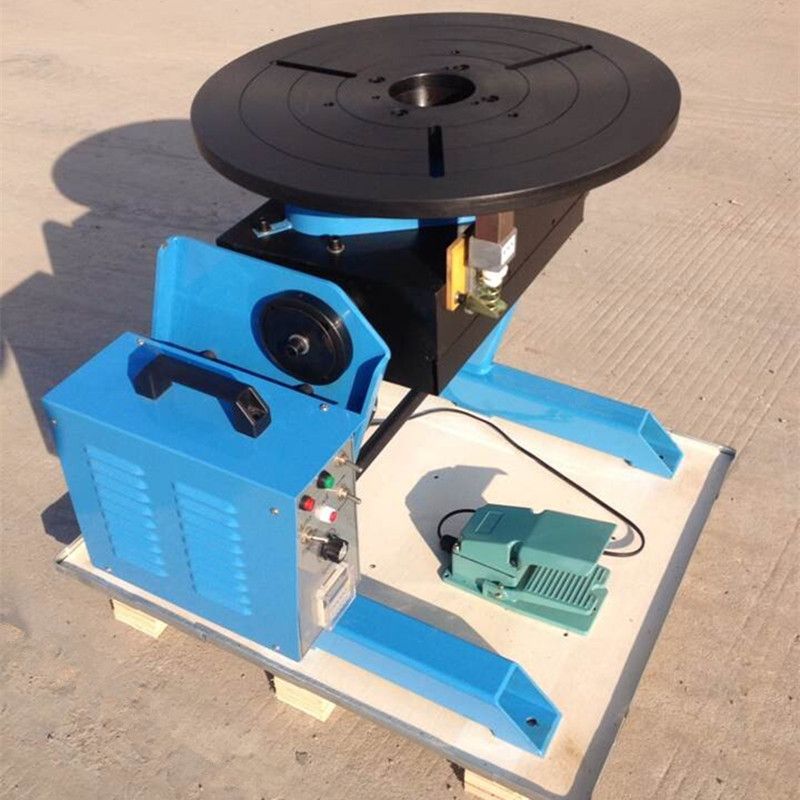

300kg Benchtop tilt welding positioner tilting turntable for pipe welding
The turntable on these variable-speed rotary welding positioners can attach pipes and flanges that are round or irregular in shape, and a foot pedal is supplied.
A well-made welding turntable or rotary welding positioner can make welding spherical items considerably simpler and more efficient.
You may precisely adjust the speed using a reversible variable speed control box, and an additional degree of control is provided by an optional variable speed pedal.
Specifications:
Why Choose Wuxi Lemar Machinery Equipments Co.,Ltd?
1. Overseas engineers:
We provide targeted after-sales service, overseas engineer training and 24-hour emergency guidance.
2. English operation control box and instruction manual:
We have English manuals to show you along with the machine. So you can learn this from existing documentation to deepen your knowledge and understanding.
3. Online teaching without geographical restrictions:
Through online video face-to-face machine teaching such as Whatsapp/Wechat/QQ/Zoom, you can easily contact us.
4. Warranty
The equipment warranty period is one year. During this period, we will be responsible for repairs and replacements for failures not caused by user misoperation. After the warranty period, our company will also pay attention to customer needs and maintenance.
5. Equipment quality commitment
All products produced by our company conform to national and enterprise standards.
Our products should meet all technical requirements and parameters and ensure safe and stable functions.
The turntable on these variable-speed rotary welding positioners can attach pipes and flanges that are round or irregular in shape, and a foot pedal is supplied.
A well-made welding turntable or rotary welding positioner can make welding spherical items considerably simpler and more efficient.
You may precisely adjust the speed using a reversible variable speed control box, and an additional degree of control is provided by an optional variable speed pedal.
| No. | Item | Specification |
| 1 | Rated load (kg): | 300 |
| 2 | Table diameter (mm): | φ500 |
| 3 | Rotation speed (rpm): | 0.2~2.5 |
| 4 | Flip angle: | 0°~90° |
| 5 | Turnover speed (rpm): | 0.4 |
| 6 | Eccentricity at rated load (mm): | 200 |
| 7 | Center of gravity distance at rated load (mm): | 200 |
| 8 | Rotating drive power (W): | 200 |
| 9 | Tilt drive power (kW): | Manual tilt |
1. Overseas engineers:
We provide targeted after-sales service, overseas engineer training and 24-hour emergency guidance.
2. English operation control box and instruction manual:
We have English manuals to show you along with the machine. So you can learn this from existing documentation to deepen your knowledge and understanding.
3. Online teaching without geographical restrictions:
Through online video face-to-face machine teaching such as Whatsapp/Wechat/QQ/Zoom, you can easily contact us.
4. Warranty
The equipment warranty period is one year. During this period, we will be responsible for repairs and replacements for failures not caused by user misoperation. After the warranty period, our company will also pay attention to customer needs and maintenance.
5. Equipment quality commitment
All products produced by our company conform to national and enterprise standards.
Our products should meet all technical requirements and parameters and ensure safe and stable functions.
