Model NO.
BWJ-05
Function
Pipe Flange Welding Turning Table
Horizontal Loading Weight
50kg
Vertical Loading Weight
25kg
Table Turning Angle
0-90
Turning Table Rotation Speed
0.5-5 Rpm
Table Diameter
315mm
Table Height
340mm
Flip Angle
0-90
Lead Time
3 Days
Chuck
Optional
Welding Mode
Pipe TIG MIG Welding
Warranty
1 Year
Motor Power
120W
CE Certificate
Yes
Welding Chuck
125/200/300mm
Transport Package
Standard Package
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Month
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.5-5r/Min
Tilting Angle:
0-90°
Voltage:
110V/220V
Condition:
New

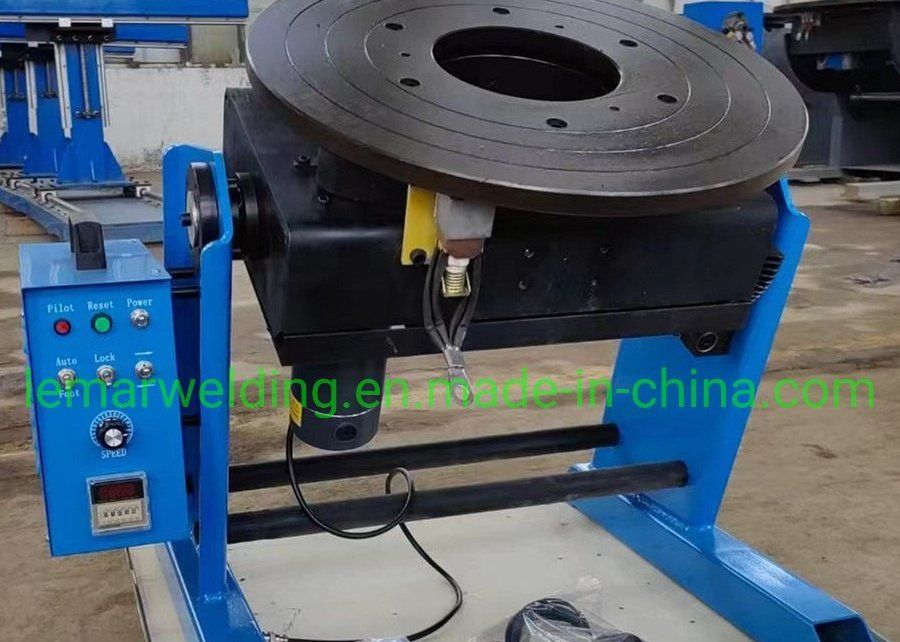

50kg Small Welding Positioner 90 degree tilting turntable for Pipe seam welding
A 120W strong motor powers this rotary welding positioner, enabling it to rotate steadily and smoothly.
The frame of welding tilting positioner is made of stainless steel, with high strength and good hardness.
(Loading capacity, horizontal/vertical: 50 kg/25 kg).
The worktable turning table has an instantaneous tilt range of 0-90 degrees.
The worm and gear's turning mechanism can be self-locked to keep it fixed at any angle you want.
High caliber three-jaw welding chucks are reinforced to stop the weldment bits from shifting and falling
TIG MIG SAW welding source machine holder supports for the welding torchto clamp any workpiece for manual welding.
We employ top-notch materials to provide the greatest caliber of work on your projects.
Specifications:
As a professional manufacturer of welding positioners and welding roller rotators,column and boom welding manipulators, Wuxi Lemar Machinery has always been adhering to the principle of customer consideration, with a wide range of production.
The load capacity of welding positioners ranges from 10kg-15Ton;
there are various types of welding positioners Single-axis welding positioner, double-axis, three-axis, seven-axis and other multi-axis welding positioner, seat type welding positioner, L-shaped welding positioner used with robots, head and tail frame assembled with various special-shaped parts Type welding positioner, 360° welding rotary table, CNC welding positioner and other products.
If you have any needs, please contact us directly and freely!
A 120W strong motor powers this rotary welding positioner, enabling it to rotate steadily and smoothly.
The frame of welding tilting positioner is made of stainless steel, with high strength and good hardness.
(Loading capacity, horizontal/vertical: 50 kg/25 kg).
The worktable turning table has an instantaneous tilt range of 0-90 degrees.
The worm and gear's turning mechanism can be self-locked to keep it fixed at any angle you want.
High caliber three-jaw welding chucks are reinforced to stop the weldment bits from shifting and falling
TIG MIG SAW welding source machine holder supports for the welding torchto clamp any workpiece for manual welding.
We employ top-notch materials to provide the greatest caliber of work on your projects.
| Model | BWJ-05 | Input power | AC220V |
| Horizontal loading | 50KG | Vertical loading | 25KG |
| Work table diameter | 315mm | Work table height | 340mm |
| Rotate speed | 0.5-5rpm | Rotate motor | 120W |
| Flip angle | 0-90° | Flip mode | Manual |
| Suitable chuck | KP-65/125/200/300 | Warranty | 1 year |
The load capacity of welding positioners ranges from 10kg-15Ton;
there are various types of welding positioners Single-axis welding positioner, double-axis, three-axis, seven-axis and other multi-axis welding positioner, seat type welding positioner, L-shaped welding positioner used with robots, head and tail frame assembled with various special-shaped parts Type welding positioner, 360° welding rotary table, CNC welding positioner and other products.
If you have any needs, please contact us directly and freely!
