Model NO.
HGK-1000
Max Loading Weight
1000ton
Suitable Pipe Diameter
2000-10000mm
Roller Linear Speed
120-1200mm/Min
Motor Power
11kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
30 Days
Wheel Width
400mm
Warranty
1 Year
Wheels Quantity
8 Wheels
Wheel Material
Rubber and Steel Wheel
Other Names
Tank Rollers/Tank Rolls and Turning Rolls
Wheel Outside Diameter
950mm
Exported to
Canada, USA, Russia, Brazil, South Africa etc
Roller Material
42CrMo Forged Steel Wheel
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Type:
Welding Turning Rolls
Structure:
Platform
Voltage:
380V
Welding Turning Rolls Type:
Self-Adjusting
Condition:
New
Model:
Hgk-1000

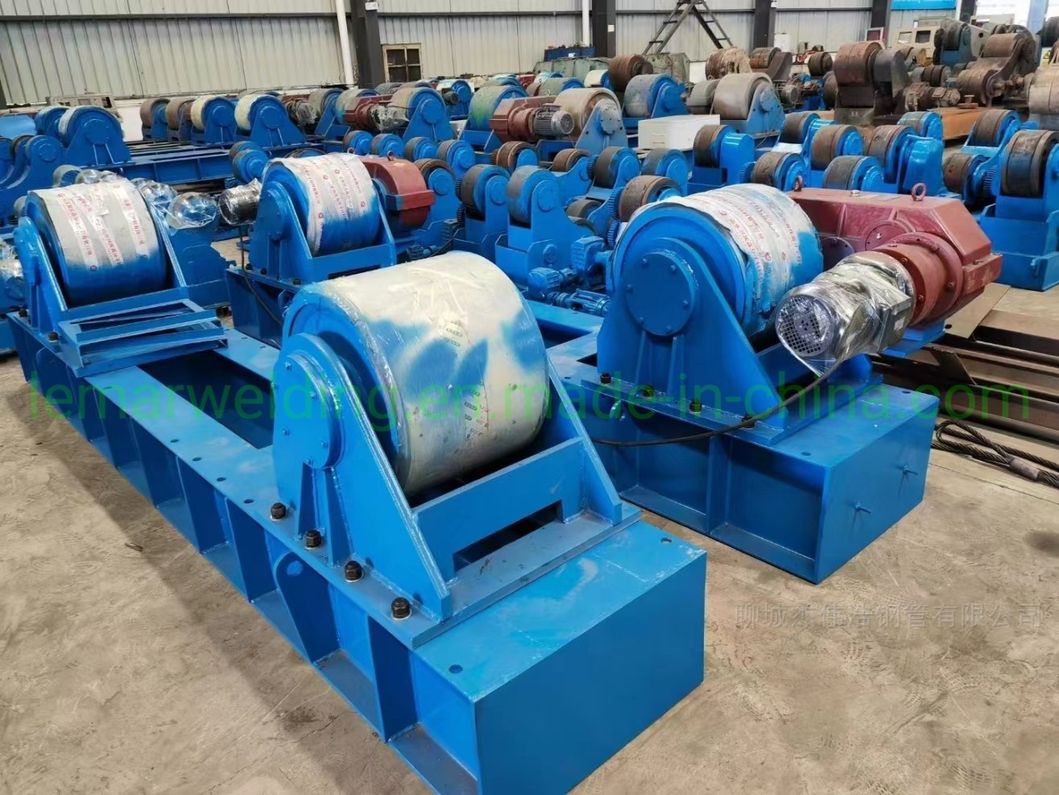

1000T 10000mm diameter Pipe Welding turning rolls welding rotator
Wuxi Lemar Machinery Equipment Co., Ltd. Is an intelligent manufacturing system integrating R&D, design, and Wuxi Lemar Welding Equipment Co., Ltd. is a well-known domestic enterprise that has produced steel structure equipment and complete sets of welding equipment.
The roller wheels of the welding rotator are made of steel and rubber, which has a large pressure bearing capacity and a long service life of the rubber wheel.
The main drive worm is quenched and ground, with large load capacity, high rotation efficiency and long service life.
The base is equipped with a scale for adjusting the bolts, and the user can adjust the distance between the two rotator wheels according to the diameter of the cylinder.
Specifications:
We have made a name for ourselves as the top manufacturer and exporter of items like welding rotators, positioners, column & booms welding manipulators, fit-up moving type welding rolls, transportation trolleys, and many more over a long period of time.
Our goods are renowned for their high caliber, dependability, and toughness, which helps our clients in more than ten different industries become more productive and productive.
We hold a company-wide certification for the ISO 9001:2015 Quality Management Standards.
Wuxi Lemar Machinery Equipments has been relied upon by our prestigious clients in the fields of heavy engineering, pressure vessel manufacture, energy & utilities, pharma, and construction.
Wuxi Lemar Machinery Equipment Co., Ltd. Is an intelligent manufacturing system integrating R&D, design, and Wuxi Lemar Welding Equipment Co., Ltd. is a well-known domestic enterprise that has produced steel structure equipment and complete sets of welding equipment.
The roller wheels of the welding rotator are made of steel and rubber, which has a large pressure bearing capacity and a long service life of the rubber wheel.
The main drive worm is quenched and ground, with large load capacity, high rotation efficiency and long service life.
The base is equipped with a scale for adjusting the bolts, and the user can adjust the distance between the two rotator wheels according to the diameter of the cylinder.
| HGK1000 Adjustable type welding rotator | ||
| Items | Specifications | |
| ★ | Name | 1000T Adjustable type welding rotator |
| ★ | Max loading weight | 1000T |
| ★ | Suitable for diameter | φ(2000-10000)mm |
| ★ | Drive and rotate capacity | 1000T |
| ★ | 1,Rotator specification | |
| ☆ | 1.1 Rotation drive capacity | 1000T |
| ☆ | 1.1.1 Rotary Drive Variable Frequency Motor Brands and Models | INVERTEK,2*15Kw Inverter motor |
| ☆ | 1.1.2 Brand and model of rotary drive reducer | Jiangsu Kaibo |
| ☆ | 1.1.3 Linear speed of roller rotation | (120-1200)mm/min |
| ☆ | 1.1.4 Rotating wheel material | 42CrMo Forged steel wheel |
| ☆ | 1.1.5 Roller outer diameter | Φ950mm |
| ☆ | 1.1.6 Total width of rollers | 450mm |
| ☆ | 1.1.7 Adjustment method of the center distance of the roller seat | Manual binning adjustment |
| ★ | 2,Electric control system | |
| ☆ | 3.1 Voltage | 380V 3P 50Hz |
| ☆ | 3.2 VFD brand | Japanese |
| ☆ | 3.3 Remote control | Wireless remote control (100m) |
| ☆ | 3.4 Remote control function | Start and stop, forward and reverse, speed regulation, emergency stop |
| ☆ | 3.5 Electric control cabinet and electric control requirements | The electric box is installed on the active end, the electric box and components have a complete protection circuit, and the control function panel of the roller frame |
| ☆ | 3.6 Provide electrical component brands | Japanese |
| ☆ | 3.7 Protection level of electric control cabinet | IP51 |
| ★ | 4. Bearing | Wafangdian Bearing group |
| ★ | 5. Sand blasting rust removal grade, paint dry film thickness | Rust removal level reaches Sa2.0-2.5 level; 1 layer of zinc-rich primer and 2 layers of 75μ epoxy resin topcoat |
| ★ | 6. Equipment paint color | Blue (RAL5015) or customer specified color card number |
| ★ | 7. Motor protection measures | Protective shell, rotating mechanism gap protection |
We have made a name for ourselves as the top manufacturer and exporter of items like welding rotators, positioners, column & booms welding manipulators, fit-up moving type welding rolls, transportation trolleys, and many more over a long period of time.Our goods are renowned for their high caliber, dependability, and toughness, which helps our clients in more than ten different industries become more productive and productive.
We hold a company-wide certification for the ISO 9001:2015 Quality Management Standards.
Wuxi Lemar Machinery Equipments has been relied upon by our prestigious clients in the fields of heavy engineering, pressure vessel manufacture, energy & utilities, pharma, and construction.
