Model NO.
BWT
Welding Tilter Type
Flexible Combination
Condition
New
Model No.
Bwj-100
Max Load Capacity
10000kg
Table Speed
0.05~0.5rpm
Tilt Speed
0.2m/Min
Turning Table Diameter
2500mm
Rotation Motor
2.2kw
Tilt Motor
2.2kw
Steel Plate Thickness
30mm
Customized
Yes
Lead Time
15 Days
Speed Adjustment
AC Frequency Converter Stepless Speed Adjustment
Welding for
Tank Pipe Flange Seam Welding Machine
Positioner Chuck
Optional
Tilt Motor Type
AC Motor
Positioner Type
Platform Fixed Welding Positioner
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.05-0.5rpm
Max Eccentricity Distance:
200mm
Voltage:
380V
Welding Turning Rolls Type:
Adjustable

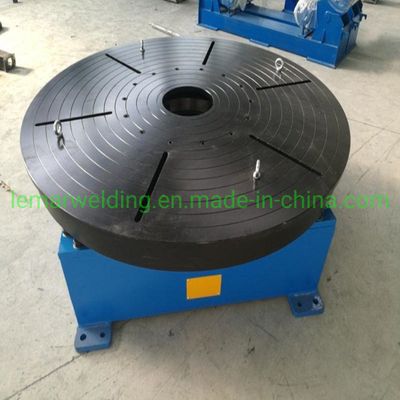

Automatic Welding worktable turning table welding positioner with remote control features:
1. The welding positioner has wireless remote control and linkage function of TIG MIG MAG CO2 welding machine, which is convenient for users to operate
2. There is no need to hire professional welders. After the welding positioner is debugged, ordinary workers can weld workpieces, reducing labor costs.
3. The welding efficiency is 3-5 times that of traditional manual welding
4. The table top of the automatic welding positioner adopts 45# steel plate, which has high hardness and is not easy to deform.
5. Independent selection of welding chuck and special welding fixture
6. The welding positioner can work continuously for 24 hours
7. The grounding group of the welding positioner is composed of copper alloy carbon brushes, which can protect the motor and the bearings of the welding positioner
1. The welding positioner has wireless remote control and linkage function of TIG MIG MAG CO2 welding machine, which is convenient for users to operate
2. There is no need to hire professional welders. After the welding positioner is debugged, ordinary workers can weld workpieces, reducing labor costs.
3. The welding efficiency is 3-5 times that of traditional manual welding
4. The table top of the automatic welding positioner adopts 45# steel plate, which has high hardness and is not easy to deform.
5. Independent selection of welding chuck and special welding fixture
6. The welding positioner can work continuously for 24 hours
7. The grounding group of the welding positioner is composed of copper alloy carbon brushes, which can protect the motor and the bearings of the welding positioner
| Model | BWJ-100 |
| Loading weight(kg) | 10000 |
| Table Speed(rpm) | 0.05~0.5 |
| Flip speed(rpm) | 0.2 |
| Flip angle(°) | 0-135 |
| Positioner diameter(mm) | Φ1500 |
| Maximum eccentricity(mm) | 200 |
| Maximum gravity(mm) | 300 |
| Rotate speed adjustment method | Frequency |
| Rotation motor(kw) | 2.2 |
| Flip motor(kw) | 3 |
Notice:
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
