Model NO.
HB-3
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Traditional Special
Condition
New
Color
as Per Customers′ Requirements
Optional
Foot Switch, Chuck
Delivery Time
Timely
Load
Can Be Customized
Rotating Speed
Cna Be Customized
Titling Angle
0-120
Size If Working Table
400mm-1800
Transport Package
Wooden or Container
Specification
CE
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
50sets Per Month
Type:
Welding Positioner
Structure:
Gantry
Rotaion Speed:
Standard
Max Eccentricity Distance:
Standard
Tilting Angle:
0-120°
Voltage:
Can Be Costomized

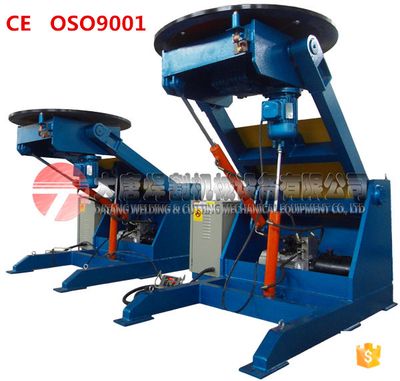

Datang welding & cutting company focused on welding positioner design, development, production, the light duty welding positioner manufacturing standards in the domestic leading level, as people have higher requirements of welding automation and labor costs continue to increase, enterprises for automatic, semi-automatic welding with auxiliary demand has grown rapidly in recent years. To this end our company produced the ordinary seat type welding positioner, Configurable for special welding chuck, combined positioner for enterprises to diversify choice, various welding positioner used to help workers work more convenient, greatly improving production efficiency and improve product quality.
| Type | HB-01 | HB-03 | HB-06 | HB-12 | HB-30 | HB-50 | HB-100 | |
| Rated weight Bearing(Kg) | 100 | 200 | 600 | 1200 | 3000 | 5000 | 10000 | |
| Overturning Veloctity(rpm) | 0.44 | 0.11 | 0.080.8 | 0.080.8 | 0.050.5 | 0.050.5 | 0.050.2 | |
| Speed of Table(rpm) | by hand | by hand | 0.55 | 0.4 | 0.23 | 0.14 | 0.14 | |
| Turning angle() | 0120 | 090 | 090 | 090 | 0120 | 0120 | 0120 | |
| Size of working Table(mm) | 400 | 600 | 1000 | 1200 | 1400 | 1500 | 2000 | |
| Power(KW) | Turning | 0.18 | 0.18 | 0.37 | 0.75 | 1.5 | 2.2 | 3 |
| Overturning | / | / | 0.75 | 1. | 1.5 | 3 | 5.5 | |
| May of setting | Frequency Conversion Stepless | |||||||
| Max distance of Gravity center(mm) | 150 | 100 | 00 | 100 | 150 | 200 | 250 | |
| Max eccenteric Distance(mm) | 100 | 100 | 100 | 150 | 200 | 300 | 400 | |
| Max turning Diameter(mm) | 600 | 800 | 1500 | 2050 | 2100 | 2500 | 3240 | |
