Pest Control Fog Sterilizer Machine
Transport Package
Wooden Case or as Required by The Customer
Specification
1.5-3.0MPa Adjustable
Trademark
China Coal
Origin
China
Production Capacity
1000 Sets Per Month
Certification:
CE
Installation Method:
Vertical
Operation Type:
Automatic
Introduction 30m U-Frame Automatic Fan:
The Working Principle of 30m U-Frame Automatic Fan is:
First, the high-pressure water pump is used to pressurize the water to the atomized atomizer and spray it out. Then, the atomized water is sent to the long distance by using the larger air pressure and air volume of the professional spray machine. The atomization area can be covered by the fan at the center of the maximum 360 degree by rotating the rotating mechanism. The water mist can be sprayed to a certain physical height, and the atomized micro mist is combined with the dust in the air to form particles, so as to achieve the effect of dust reduction and air purification.Technical Features of 30m U-Frame Automatic Fan:
1. powerful, wide range, wide coverage, high efficiency, fast spraying speed, strong penetration, humidification and cooling effect.2. The dust reduction effect is good, and the fog particles are small and uniform. When contacting with the floating dust, a wet fog is formed, which can quickly reduce the dust.
3. The supporting power is flexible, i.e. 380V power supply or generator set (customized by foreign voltage). 4. The installation platform is wide, which can be installed on the platform or on transport vehicles.
5. Effectively save water, saving 70% - 80% more water than spray gun, sprinkler, etc., and covering a large area.
Advantages of 30m U-Frame Automatic Fan:
1. The air inlet collector adopts the one-time forming design of arc-shaped mold. According to the optimal ratio of arc radius to diameter, the air loss is minimized and negligible, creating a uniform flow field;2. Sinusoidal sawtooth guide vane is adopted at the tail to effectively reduce aerodynamic noise;
3. The inner cylinder adopts streamlined design as a whole to make the gas accelerate effectively and evenly;
4. The blade adopts cast aluminum alloy technology and aviation wing design, with limited aerodynamic performance and off design performance, strong air flow matching ability and minimal aerodynamic loss;
5. Streamline cover: hemispherical design, which can better ensure the uniformity of velocity field in front of the inlet;
6. The design of curved air inlet (professional mold processing) has small loss coefficient of air inlet;
7. Advanced diversion design and manufacture, shock suppression and improvement of static pressure efficiency;
8. The expanded swing plate design can effectively inhibit the emission and attenuation of wind and fog;
9. The golden ratio design of cone and straight cylinder ensures the highest static pressure conversion efficiency;
10. Drip core barrel design to ensure uniform acceleration field.
Parameter of 30m U-Frame Automatic Fan:
| Spray flow rate | 30-35meter | Spray flow rate | 1-2m ³ Adjustable |
| Hydraulic pump pressure | 1.5-3.0MPa Adjustable | Atomized particles | 30-200μm |
| Horizontal rotation angle | Conventional 0-320 ° customizable | Up and down pitch angle | Conventional 0-30 ° customizable |
| Fan power | 3kw | Pump power | 1.5KW centrifugal pump |
| Up and down pitching hydraulic pump station | 0.55kw | Left and right rotating motor | 0.55KW |
| Total power | 5.05kw | Start mode | Direct start |
| supply voltage | 380v | working frequency | 50HZ |
| Water ring | stainless steel | Number of nozzles | Single ring 16 nozzles |
| Fan blade material | Aluminum magnesium alloy | Number of blades | 6 leaves |
| Fan air volume | 14800m³ | Fan air pressure | 1578pa |
| Water inlet hose | 40 internal meridian | External water inlet joint | DN25 outer wire |
| connection | 10 GB cable | operation mode | Remote manual |
| Base size | 1100*800*630mm | Overall dimension | 1350*800*1766mm |

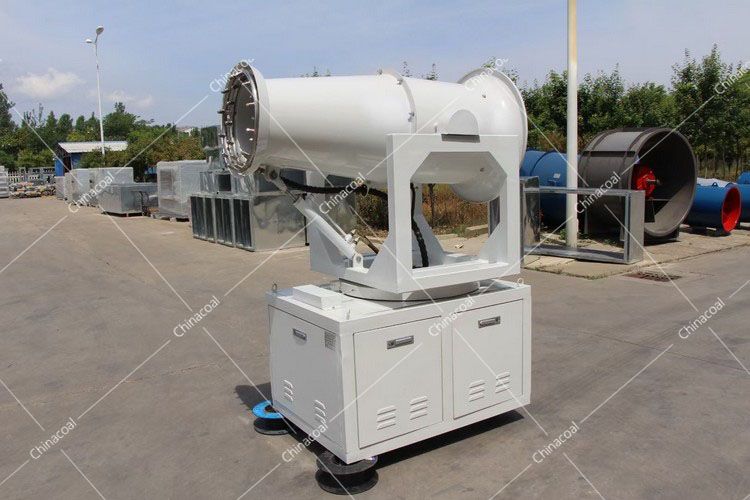

Photos of 30m U-Frame Automatic Fan:
