Model NO.
SUD500H
Material
Aluminum
Welding Range
250 280 315 355 400 450 500
Certification
ISO, Ce, SGS
Warranty
1 Year
Total Power
9.5kw
Working Voltage
380V 50Hz/220V 50Hz
Weight
560kg
Packing
3 Wooden Boxes
Transport Package
Standard Export Wooden Box
Specification
ISO, CE, SGS
Trademark
SUDA
Origin
China(Mainland)
HS Code
8515290000
Production Capacity
1000sets/Months
Cooling Way:
Air Cooling
Control:
Hydraulic
Style:
Butt Welder
Frequency Range:
Low Frequency
Electric Current:
AC
Name:
HDPE Pipe Welding Machine
SUD250-500H HDPE Pipe Welding Machine/Plastic Pipe Butt Welder/ PE Pipe Butt Fusion Machine
Suitable for welding of plastic pipes and fittings made from PE, PP&PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
- Removable PTFE caoated heating plate with separate temperature control system.
- Electric Planning Tool with reversible double cutting edge blades.
- Hydraulic Unit provides welding machine with compressing power.
- Be made of Aluminum material.
- Low starting pressure ensures reliable welding quality of small pipes.
- Temperature Controller and Timer, easy to know the exact time and temperature.
| Model | SUD500H |
| Welding Range(mm) | 250 280 315 355 400 450 500 |
| Heating Plate Max.Temp. | 270°C |
| Temp. Deviation in Surface | ≤±7°C |
| Pressure Adjustable Ranges | 0-8.0MPa |
| Working Voltage | 380V 50HZ/220V 50HZ |
| Heating Plate Power | 6.5KW |
| Planning Tool Power | 1.50KW |
| Hydraulic Unit Power | 1.50KW |
| Total Power | 9.5KW |
| Weight | 560KG |
| Volume | 2.5M3 |

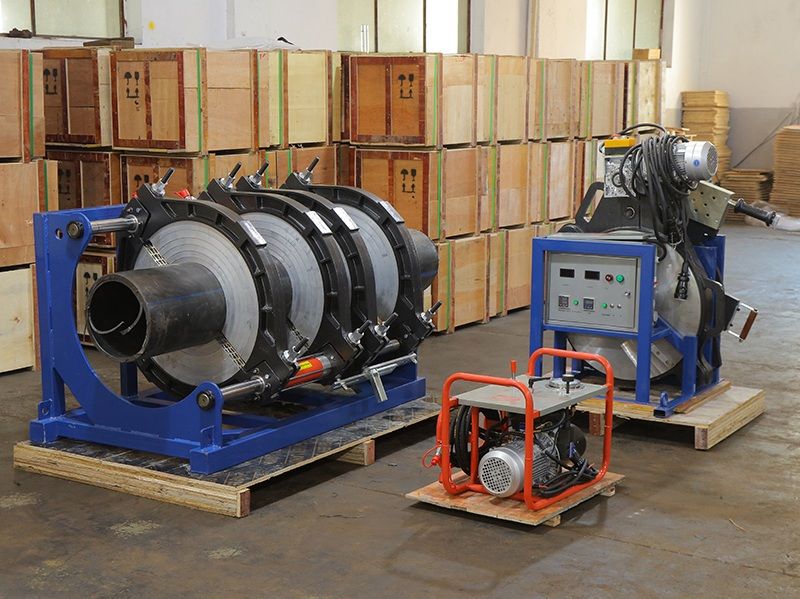

Construction Picture
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
