Model NO.
ZCZ9392TJZ
Shape
Flatbed
Axle Number
3
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Landing Gear
19inches, Linkage(Jost, Fuwa, Holland Brands)
Number of The Axles
3PCS
King Pin
50# Traction Pin Welded
Tyre
11.00r20-16pr (Triangle, Exquisite, Jin Guan)
Wheel Rim
8.0-20(Sunrise, Kingu, Xing Min)
Spare Tyre Carrier
2 PCS
Spare Wheel
No
Chamber
Stored Chamber
Main Beam Specification
14/8/16 mm, Height 500mm
Number of Twist Locks
12 PCS
Transport Package
Best Package, in Bulk, Sea Water-Proof Paint
Specification
CCC ISO9001 SGS
Trademark
CHHGC
Origin
China
HS Code
8716399000
Production Capacity
5000 PCS Per Month
Load Capacity:
50T
Certification:
GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base:
8000-9000mm
Tread:
2240mm
Grade:
Heavy Duty
Independent Suspension Type:
Trailing Arm Type
Product Description

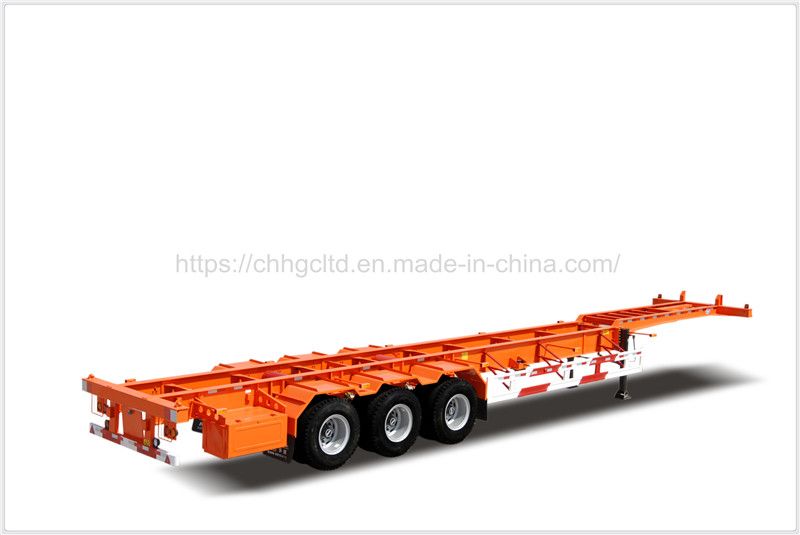

3 Axles 40ft or 2*20ft Gooseneck Design Container Chassis Skeleton Trailer
Technical Parameters
Configurations:
** Axle: 13T CIMC/3 pieces (with 16T brake pad)
** Landing gear: 19inches, linkage(JOST,FUWA,HOLLAND brands)
** King pin:50# traction pin Welded
** Tyre: 11.00R20-16PR (Triangle, Exquisite, Jin Guan)
** Wheel Rim: 8.0-20(Sunrise,Kingu,Xing Min)
** Spare tyre carrier: 2 pcs
** Spare wheel: No
** Chamber: stored chamber
** ABS: 4S/2M
** Toolbox: 1m/ 1piece
** Main beam specification: 14/8/16 mm, height 500mm
** Number of twist locks: 12 pcs
Product characteristics
Suspension system:The characteristic new suspension system and imported U.S. Holland suspension system feature balanced load among various axles.The tie rod angle of the system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operations.The snap ring for shafts are of integral casting,of which the lower snap ring is the enterprise's patented product.
Axles:The axles choose the quality products manufactured by professional manufactures,featuring high bearing capacity and difficult deformation.In addition,the optional anti-lock brake system(ABS)from domestic or foreign renowned brand can effectively eliminate the sideslip and drifting of vehicle due to locking of wheel in event of emergency braking and improve the driving safety of the vehicle.
Light dead weight:The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed.
Low bearing surface:The optional gooseneck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety.
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
3 Axles 40ft or 2*20ft Gooseneck Design Container Chassis Skeleton Trailer
Technical Parameters
Configurations:
** Axle: 13T CIMC/3 pieces (with 16T brake pad)
** Landing gear: 19inches, linkage(JOST,FUWA,HOLLAND brands)
** King pin:50# traction pin Welded
** Tyre: 11.00R20-16PR (Triangle, Exquisite, Jin Guan)
** Wheel Rim: 8.0-20(Sunrise,Kingu,Xing Min)
** Spare tyre carrier: 2 pcs
** Spare wheel: No
** Chamber: stored chamber
** ABS: 4S/2M
** Toolbox: 1m/ 1piece
** Main beam specification: 14/8/16 mm, height 500mm
** Number of twist locks: 12 pcs
Product characteristics
Suspension system:The characteristic new suspension system and imported U.S. Holland suspension system feature balanced load among various axles.The tie rod angle of the system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operations.The snap ring for shafts are of integral casting,of which the lower snap ring is the enterprise's patented product.
Axles:The axles choose the quality products manufactured by professional manufactures,featuring high bearing capacity and difficult deformation.In addition,the optional anti-lock brake system(ABS)from domestic or foreign renowned brand can effectively eliminate the sideslip and drifting of vehicle due to locking of wheel in event of emergency braking and improve the driving safety of the vehicle.
Light dead weight:The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed.
Low bearing surface:The optional gooseneck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety.
| item | unit | quantity | notice |
| overall dimension | 14000length*2500width*1510height, detail according to the drawing | ||
| axle | piece | 3 | FUWA-13T |
| tyre | piece | 12 | 11.00R20-16PR ,Triangle Tire without spare tire |
| rim | piece | 12 | 8.0-20 |
| leaf spring | piece | 6 | 90width*10pieces*13 thickness |
| braking system | set | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. | |
| electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| suspension | set | 3 | CIMC HUAJUN Suspension |
| relay valve | whole vehicle | 1 | WABCO |
| landing gear | pair | 1 | 19' Single side operation |
| kingpin 2" | piece | 1 | JOST 50# KZ1012 |
| tie-in | piece | 2 | haldex |
| chamber | piece | 2 | stored chamber 2 units T30/30 |
| upper and lower wing plates | 16/20mm,width146mm, using the highly quality Q345 steel, | ||
| twist locks | 10 | can load 1*40',1*45' containers,2*20' or one 20' | |
| main beam | height: 500mm webplate:8mm using the highly quality Q345 steel | ||
| reflectors | Red triangle reflectors at the rear of the trailer and on side | ||
| Shotblasting and paint | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. | ||
| spare tyre carrier | 2 | standard | |
| color | according to required on customer |
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
