Model NO.
HHZ9402GRYHJC
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Rated Weight
30000kgs
Axle Base
5480+1310+1310, 5730+1310+1310mm
Overall Length
11000mm
Overall Wide
2500mm
Overall Height
3520/3620/3720mm
Q′ty of The Steel Plate Spring
-/4/4/4, -/7/7/7, -/10/10/10, -/12/12/12PCS
Axle Load
23980/23950kgs
Transport Package
in Nude
Specification
CCC ISO9001 SGS
Trademark
CHHGC
Origin
Henan Province, China
HS Code
8716399000
Production Capacity
500 PCS Per Month
Type:
Semi-Trailer
Wheel Base:
7000-8000mm
Tread:
1820mm
Grade:
Light Duty
Independent Suspension Type:
Cross Arm Type
Shape:
Van-type
Chinese Brand 3 Axle Liquid Chemical/Oil/Fuel Tanker Semi-Trailer
Specifications
Characteristics
--The semi-trailer utilizes the domestic and international most advances PRO/ENGINEER 3-dimensional design software and the finite element analysis and frame mechanical analysis to guarantee the quality of tank body, improve the safety coefficient during the transport, and maximize the structural rationality of whole vehicle while ensuring that every part is optimized for matching.
--The raw materials and parts adopt the products from domestic or foreign renowned brands, of which the critical structural parts are specially supplied by the China's biggest special vehicle parts supplier.
--The tank body is rolled by large rolling machine and one-time two-face special forming welder and special overturning and welding equipment are adopted at the time of welding to ensure fabrication precision. The sealing plug adopts advanced tensioning plug process, featuring more powerful impact resistance. The quality control points are established to implement the quality management measures to each step of the production process and thus effectively guarantee the stability and reliability of the product quality.
--The sealing test of tanker semi-trailer is conducted before the delivery of product to ensure good sealing performance of whole vehicle, without and air leakage or permeation. The special inspection equipment, X-ray detector, is utilized to eliminate all potential safety risks of the tank body in the manufacturing process.
--The value protection box is installed at the material outlet, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries.
--The suspension system adopts the characteristic new suspension to ensure balance load transmission among various chafts and eliminate any abnormal tire wear.
--The snap ring for shafts are of integrally cast parts. High attendance rate and low malfunction rate ensure longer effective working time of the vehicle and build higher operation value for the customers.
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need, based on our 60 years experiences of producing trailers.
Our Products

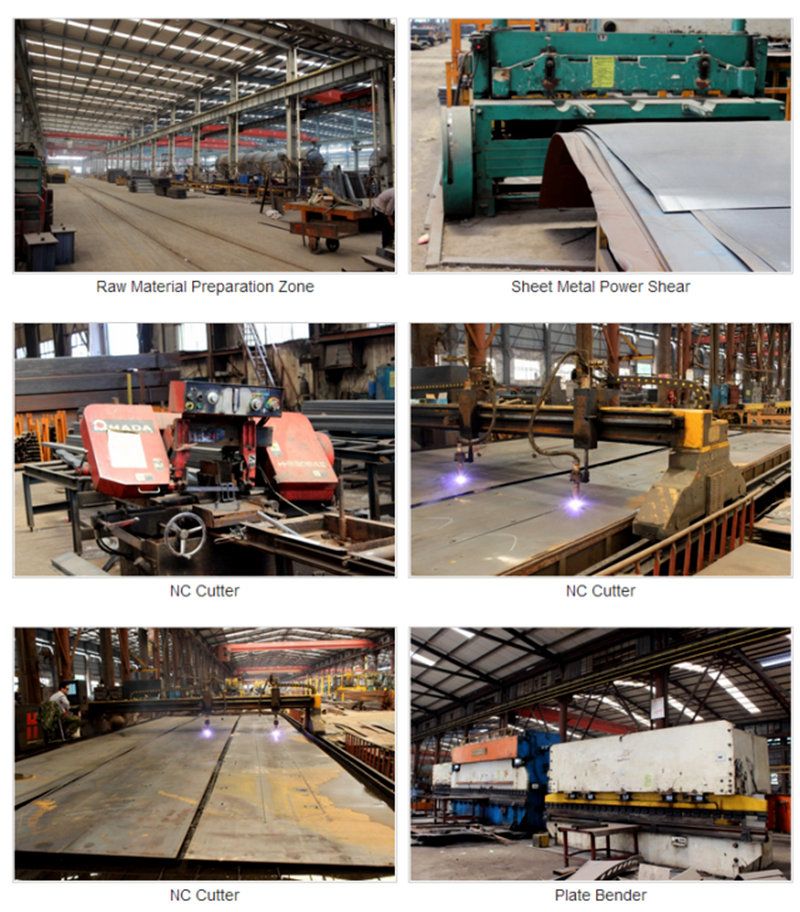

Workshop
Product Features
--The semi-trailer utilizes the domestic and international most advances PRO/ENGINEER 3-dimensional design software and the finite element analysis and frame mechanical analysis to guarantee the quality of tank body, improve the safety coefficient during the transport, and maximize the structural rationality of whole vehicle while ensuring that every part is optimized for matching.
--The raw materials and parts adopt the products from domestic or foreign renowned brands, of which the critical structural parts are specially supplied by the China's biggest special vehicle parts supplier.
--The tank body is rolled by large rolling machine and one-time two-face special forming welder and special overturning and welding equipment are adopted at the time of welding to ensure fabrication precision. The sealing plug adopts advanced tensioning plug process, featuring more powerful impact resistance. The quality control points are established to implement the quality management measures to each step of the production process and thus effectively guarantee the stability and reliability of the product quality.
--The sealing test of tanker semi-trailer is conducted before the delivery of product to ensure good sealing performance of whole vehicle, without and air leakage or permeation. The special inspection equipment, X-ray detector, is utilized to eliminate all potential safety risks of the tank body in the manufacturing process.
--The value protection box is installed at the material outlet, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries.
--The suspension system adopts the characteristic new suspension to ensure balance load transmission among various chafts and eliminate any abnormal tire wear.
--The snap ring for shafts are of integrally cast parts. High attendance rate and low malfunction rate ensure longer effective working time of the vehicle and build higher operation value for the customers.
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need, based on our 60 years experiences of producing trailers.
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why us?
Multiple structure and multiple materials of tank body to meet individual loading demands! Choice of multiple models and multiple series and multiple series to meet transport demands of different medium!
--It's applicable for the transport of all kinds of liquid chemical products, such as diesel, gasoline, caustic soda, concentrated sulfuric acid, and crude oil. The inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.
--The tank body is in shape of oval, rounded rectangle, or circle and is designed as per requirements of national standard to improve the operation safety.
--The OEM parts from domestic and foreign renowned brands are adopted, featuring elegance, durability, and reduction of operation cost and repair cost.
--The liquid tanker semi-trailer obtained multiple national patents, featuring light dead weight and low gravity center of whole vehicle.
--The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistance against distortion, vibration, and bump and meet the loading requirements on different roads.
--The tank body adopts the shot blasting, phosphating, and derusting processes and high grade polyester powder coating, featuring high paint adhesion and elegant, shining, and lasting performance.
--The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
Specifications
| Item No. | HHZ9402GRYHJC | Batch | 240 |
| Brand | CHHGC | Type | Flammable liquid tank semi-trailer |
| Rated weight | 30000 | Total Weight(kg) | 39800 |
| Curb weight(kg) | 9800 | Axles' Quantity | 3 |
| Axle base(mm) | 5480+1310+1310,5730+1310+1310 | Axle load | 23980/23950(3 axles installed side by side) |
| Q'ty of the steel plate spring | -/4/4/4,-/7/7/7,-/10/10/10,-/12/12/12 | Tyre Quantity | 12 |
| Tyre size | 11.00R20 12PR,12R22.5 12PR,11R22.5 12PR | Approach/Departure angle | -/21 |
| Front/rear suspension(mm) | -/1500,-/1500 | Overall length | 11000 |
| Wheel base(mm) | 1840/1840/1840,1820/1820/1820 | Overall wide | 2500 |
| Max loading of the saddle | 15820/15850 | Overall height | 3520/3620/3720 |
| Model | HHZ9401GHYHJB | Model | HHV9400GHYHT |
| Overall dimensions(mm) | 10650*2500*3490,3690 | Overall dimensions(mm) | 10650*2500*3490 |
| Sizes of tank body | 10200*2490*1950mm | Sizes of tank body | 3700/6500 in lengths of tank body(front/ rear), |
| 3460 in width, and 1450/1700 in height(front/rear) | |||
| Nominal capacity | 40.3m³ | Nominal capacity | 32.2m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 5480+1310+1310 | Wheelbase(mm) | 5480+1310+1310 |
| Nominal front/rear suspension | 1150/1400 | Nominal front/rear suspension | 1150/1400 |
| Bearing capacity(kg) | 31500 | Bearing capacity(kg) | 29000 |
| Curb Weight(kg) | 8300 | Curb Weight(kg) | 10680 |
| Number of leaf spring plate | 7 \10\12 | Number of leaf spring plate | 10 \12 |
| ***************************40 m³ liquid chemical tank semi trailer | |||
| ++++++++++++++++++++++++++++++ | |||
| ***************************51 m³ liquid chemical tank semi trailer | |||
| Model | HHZ9400GHYHJB | Model | HHZ9403GRYHJC |
| Overall dimensions(mm) | 12000*2500*3850 | Overall dimensions(mm) | 12000*2500*3520, 3620,3720 |
| Sizes of tank body | 11800mm in length, | Sizes of tank body | 11440 in straight segment of tank body, |
| 2484mm in width(maximum), | with maximum width at 3495 | ||
| and 2350mm in height(maximum) | and maximum height at 1950 | ||
| Nominal capacity | 51m³ | Nominal capacity | 51m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 6300+1310+1310 | Wheelbase(mm) | 6300+1310+1310 |
| Nominal front/rear suspension | 1300/1780 | Nominal front/rear suspension | 1300/1780 |
| Bearing capacity(kg) | 31000 | Bearing capacity(kg) | 31000 |
| Curb Weight(kg) | 9000 | Curb Weight(kg) | 9000 |
| Number of leaf spring plate | 7 \ 10 \ 12 | Number of leaf spring plate | 7 \ 10 \ 12 |
| ****************************small liquid chemical tank semi trailer | |||
| Model | HHV5312GYYHJCA | HHZ5311GYYDF | HHZ5310GYYZZ |
| Overall dimensions(mm) | 11980*2500*3850,3550 | 11890*2500*3600,3850 | 11990*2500*3950,3650 |
| Sizes of tank body | 9300mm in exterior length of tank body, | 9300mm in exterior length of tank body, | 8950mm in exterior length of tank body, |
| 2460mm in width, | 2460mm in upper width, | 2350mm in major length of cross section | |
| and 1890mm in height | 2460mm in lower width, | and 1450mm in minor length | |
| and 1890mm in height | |||
| Nominal capacity | 23.1m³ | 23.1m³ | 22m³ |
| Rated Bearing capacity(kg) | 15500 | 15500 | 14000 |
| Curb Weight(kg) | 15260 | 15290 | 16520 |
| Total mass | 30890 | 30985 | 30650 |
| *****************************20/24 m³ liquid chemical tank semi trailer | |||
| Model | HHZ9400GHYHJA | HHZ9401GRYHJC | |
| Overall dimensions(mm) | 10650*2500*3620 | 10650*2500*3650,3750 | |
| Sizes of tank body | 1750mm in diameter of tank body, | 1716mm in front segment diameter of tank body, | |
| 959mm in straight segment, | 1966mm in rear segment diameter, | ||
| and 10200mm in total length | and 9222mm in total straight length of tank body | ||
| Nominal capacity | 20m³ | 24m³ | |
| Number of axle | 3 | 3 | |
| Wheelbase(mm) | 5480+1310+1310 | 5480+1310+1310, 5300+1310+1310 | |
| Nominal front/rear suspension | 1150/1400 | 1150/1400,1300/1430 | |
| Bearing capacity(kg) | 29800 | 29500 | |
| Curb Weight(kg) | 10200 | 10480 | |
| Number of leaf spring plate | 4 \10\12 | 4 \7\10\12 | |
Characteristics
--The semi-trailer utilizes the domestic and international most advances PRO/ENGINEER 3-dimensional design software and the finite element analysis and frame mechanical analysis to guarantee the quality of tank body, improve the safety coefficient during the transport, and maximize the structural rationality of whole vehicle while ensuring that every part is optimized for matching.
--The raw materials and parts adopt the products from domestic or foreign renowned brands, of which the critical structural parts are specially supplied by the China's biggest special vehicle parts supplier.
--The tank body is rolled by large rolling machine and one-time two-face special forming welder and special overturning and welding equipment are adopted at the time of welding to ensure fabrication precision. The sealing plug adopts advanced tensioning plug process, featuring more powerful impact resistance. The quality control points are established to implement the quality management measures to each step of the production process and thus effectively guarantee the stability and reliability of the product quality.
--The sealing test of tanker semi-trailer is conducted before the delivery of product to ensure good sealing performance of whole vehicle, without and air leakage or permeation. The special inspection equipment, X-ray detector, is utilized to eliminate all potential safety risks of the tank body in the manufacturing process.
--The value protection box is installed at the material outlet, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries.
--The suspension system adopts the characteristic new suspension to ensure balance load transmission among various chafts and eliminate any abnormal tire wear.
--The snap ring for shafts are of integrally cast parts. High attendance rate and low malfunction rate ensure longer effective working time of the vehicle and build higher operation value for the customers.
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need, based on our 60 years experiences of producing trailers.
Our Products
Workshop
Product Features
--The semi-trailer utilizes the domestic and international most advances PRO/ENGINEER 3-dimensional design software and the finite element analysis and frame mechanical analysis to guarantee the quality of tank body, improve the safety coefficient during the transport, and maximize the structural rationality of whole vehicle while ensuring that every part is optimized for matching.
--The raw materials and parts adopt the products from domestic or foreign renowned brands, of which the critical structural parts are specially supplied by the China's biggest special vehicle parts supplier.
--The tank body is rolled by large rolling machine and one-time two-face special forming welder and special overturning and welding equipment are adopted at the time of welding to ensure fabrication precision. The sealing plug adopts advanced tensioning plug process, featuring more powerful impact resistance. The quality control points are established to implement the quality management measures to each step of the production process and thus effectively guarantee the stability and reliability of the product quality.
--The sealing test of tanker semi-trailer is conducted before the delivery of product to ensure good sealing performance of whole vehicle, without and air leakage or permeation. The special inspection equipment, X-ray detector, is utilized to eliminate all potential safety risks of the tank body in the manufacturing process.
--The value protection box is installed at the material outlet, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries.
--The suspension system adopts the characteristic new suspension to ensure balance load transmission among various chafts and eliminate any abnormal tire wear.
--The snap ring for shafts are of integrally cast parts. High attendance rate and low malfunction rate ensure longer effective working time of the vehicle and build higher operation value for the customers.
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need, based on our 60 years experiences of producing trailers.
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why us?
Multiple structure and multiple materials of tank body to meet individual loading demands! Choice of multiple models and multiple series and multiple series to meet transport demands of different medium!
--It's applicable for the transport of all kinds of liquid chemical products, such as diesel, gasoline, caustic soda, concentrated sulfuric acid, and crude oil. The inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.
--The tank body is in shape of oval, rounded rectangle, or circle and is designed as per requirements of national standard to improve the operation safety.
--The OEM parts from domestic and foreign renowned brands are adopted, featuring elegance, durability, and reduction of operation cost and repair cost.
--The liquid tanker semi-trailer obtained multiple national patents, featuring light dead weight and low gravity center of whole vehicle.
--The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistance against distortion, vibration, and bump and meet the loading requirements on different roads.
--The tank body adopts the shot blasting, phosphating, and derusting processes and high grade polyester powder coating, featuring high paint adhesion and elegant, shining, and lasting performance.
--The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
