Model NO.
ZJV9350GJBDD01
Independent Suspension Type
Multi-link Type
Shape
Tank Type
Axle Number
3
Tire Number
12PCS
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Dimensions
9050mm*2500mm*3995 mm
Paint Color
White or Customized
Tare Weight
8870kg
Wheelbase (mm)
4325+1350 mm
Tank Material
Wear-Resisting Manganese Alloy Steel
Agitating Capacity
6.0m³
Engine
Wd615.96e/276, HP300( Euro III)
Cabin
Hy07(with Air-Conditioner, One Sleeper Bed)
Rim/Tire
8.5-20/12.00-20(8.0-20/11.00-20)
OEM
Available
Transport Package
Standard Export Packing
Specification
CE SGS
Trademark
CHHGC
Origin
China
HS Code
8716399000
Production Capacity
1000 PCS/ Month
Type:
Semi-Trailer
Load Capacity:
10T
Certification:
ECE, GCC, CE, ISO9001
Wheel Base:
7000-8000mm
Tread:
1820mm
Grade:
Light Duty

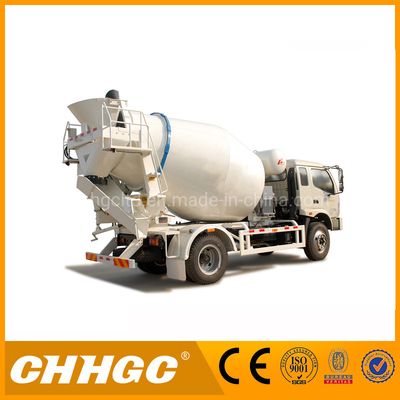

China manufacturer supply concrete mixing tank /concrete transportation tanker truck trailer
-----Product parameter
A concrete mixer truck can be divided into major two parts,namely Concrete Mixer Drum and Truck Chassis. Cement mixer truck adopts Euro modern style, featuring attractive appearance, rational structure and stable performance. The capacity ranges from 3 to 16m3, meeting customers' various needs.
-----Product advantages
1.450L ultra-high capacity water tank,meet the user's demand for flushing oh vehicle body and the
glass level gauge is equipped,high transparency,strong pressure resistance,safety and durability;
2.Humanized punched ladder footrest,better anti-skid and safer operations;
3.Characteristic spiral line design of tank body,fast discharge speed and high efficiency;
4.Unique externally steel wire wrapped hydraulic pipe,better prevent the burst of hydraulic pipe;
5.Environmentally friendly plastic dust cover,guards against dust,restrains the lubricating oil,reduces
the environment contamination and prolongs life of support wheel;
6.Deepened,widened,and thickened anti-wear discharge chute,while eliminating any possibility of
material overflow at the time of discharge,it promotes the discharge speed;
7.Humanized chute baffle,while easing the operations by user,it prevents the contamination of the
splashing concrete onto the road during the transport;
8.Triple-linked control system,the control system realizes the triple-linked control within the cabin
and on the right and left sides of the tail.
------The main components of the warranty period(See table):
-----Packaging & Delivery
-----Factory Show
-----Product parameter
| Drive Type | 6*4 |
| Engine | WD615.96E/276 ,HP300( Euro III) |
| 6 cylinder in-line with water cooling, turbo-charging & inter-cooling, 4 stroke direct injection diesel engine.electronic control EGR | |
| Displacement : 9.726L | |
| Cabin | HY07(with air-conditioner, one Sleeper Bed) |
| Transmission | HW15710 (10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Ton) |
| Driving Axle | 2×HC16 (2×16 Ton) |
| Steering | D50 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 8.5-20/12.00-20(8.0-20/11.00-20) |
| Concrete Mixer Drum | Material:16Mn, 5mm high-quality wear-resisting manganese alloy steel |
| Agitating capacity: 6.0m³ | |
| Charge speed : ≥3 m³/min | |
| Discharge speed: ≥2 m³/min | |
| Surplus rate: ≤0.5 % | |
| Drum revolving speed : 0-16rpm/min | |
| Wheel Base | 4325+1350 mm |
| Overall Dimension | 9050mm*2500mm*3995 mm |
| Tare Weight | 8870kg |
| Gross Weight | 25000kg |
| Max. Speed | 90 km/h |
| Color | White or customized |
A concrete mixer truck can be divided into major two parts,namely Concrete Mixer Drum and Truck Chassis. Cement mixer truck adopts Euro modern style, featuring attractive appearance, rational structure and stable performance. The capacity ranges from 3 to 16m3, meeting customers' various needs.
-----Product advantages
1.450L ultra-high capacity water tank,meet the user's demand for flushing oh vehicle body and the
glass level gauge is equipped,high transparency,strong pressure resistance,safety and durability;
2.Humanized punched ladder footrest,better anti-skid and safer operations;
3.Characteristic spiral line design of tank body,fast discharge speed and high efficiency;
4.Unique externally steel wire wrapped hydraulic pipe,better prevent the burst of hydraulic pipe;
5.Environmentally friendly plastic dust cover,guards against dust,restrains the lubricating oil,reduces
the environment contamination and prolongs life of support wheel;
6.Deepened,widened,and thickened anti-wear discharge chute,while eliminating any possibility of
material overflow at the time of discharge,it promotes the discharge speed;
7.Humanized chute baffle,while easing the operations by user,it prevents the contamination of the
splashing concrete onto the road during the transport;
8.Triple-linked control system,the control system realizes the triple-linked control within the cabin
and on the right and left sides of the tail.
------The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
-----Packaging & Delivery
Packaging Details: | nude |
| Delivery Detail: | 20days after recive the disport |
-----Factory Show
