Model NO.
LAT9321TDP
Independent Suspension Type
Cross Arm Type
Shape
Lowbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Product Name
Lowbed Semi Trailer
Dimension
13000X3000X1710mm
Tare Weight
10tons
Axles
Fuwa / BPW
Brake
Dual Line
Tyre Specifications
11r22.5 / 11.00r20
Suspension
Leaf Spring Suspension
Transport Package
Naked
Specification
30T
Trademark
AOTONG
Origin
Shangdong Province, China
HS Code
8716900000
Production Capacity
300 Set/Sets Per Month
Type:
Semi-Trailer
Load Capacity:
30T
Certification:
CCC, ISO/TS16949
Wheel Base:
7000-8000mm
Tread:
1820mm
Grade:
Heavy Duty
2 axle 30 tons low loader semi trailer, excavator carrier semi trailer
View Factory:
Products Details:

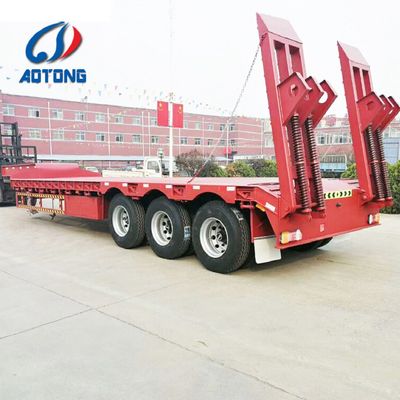

3 axles lowbed semi trailer
View Factory:
Products Details:
3 axles lowbed semi trailer
| Model | LAT9320TDP |
| Size | 13000*3000*1100 (mm) |
| Payload | 60000KG |
| Main beam | Heavy duty I beam. |
| Side beam | 250mm I beam |
| Plate | 4mm checked plate |
| Ladder | Mechanical spring ladder or hydraulic ladder |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 / 11.00R20 12pcs (Other size optional) |
| Rim | 9.00-22.5 / 11.00R20 12pcs (Other size optional) |
| Kin pin | 2''/3.5'' bolt type |
| Landing gear | 28 Ton two speed |
| Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
