Product Description
1. Garbage Bin/ hopper:
* size options : 2cbm to 18cbm.
* shapes : trapzoid,boat-shape,square shape.
* above-ground and under-ground type.
2. Hydraulic Control Loading & Unloading System.
* Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
* Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
3. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
Product Specification
Truck Model | ZZ1257N3647B, Left hand drive/Right Hand Drive model | |
Truck Brand | SINOTRUK -HOWO | |
Dimension(Lx W xH) | 11250*2480*2690 | |
Cargo body size (L*W*H, mm) | 5400x2300x1400 | |
Container thickness(mm) | bottom:8mm, side:4mm | |
Approaching angle/Departure angle(°) | 19/26 | |
Overhang(front/rear) (mm) | 1940/1860 | |
Wheel base (mm) | 1850+5450 | |
Max speed(km/h) | 90 | |
Curb weight(kg) | 7510 | |
Loading Weight(kg) | 20,400 | |
Fuel Tanker | 300L with locking fuel cap | |
Fuel consumption(L/100km) | 32 | |
Clutch | Single-plate dry clutch Φ430mm | |
Engine | Model | WD615.62,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , |
Horse Power, | 220HP | |
Emission Standard | EURO II | |
Transmission | Model | HW 19710,10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | ZF8098/ZF8118 hydraulic steering with power assistance |
Front axle | HF9 | |
Rear axle | HC16 | |
Tire | 12.00R20 | |
Electrical system | Operating voltage | 24V,negative grounded |
Starter | 24V,7.35KW | |
Alternator | 28V,1500W | |
Batteries | 2*12V.165Ah | |
Product Show

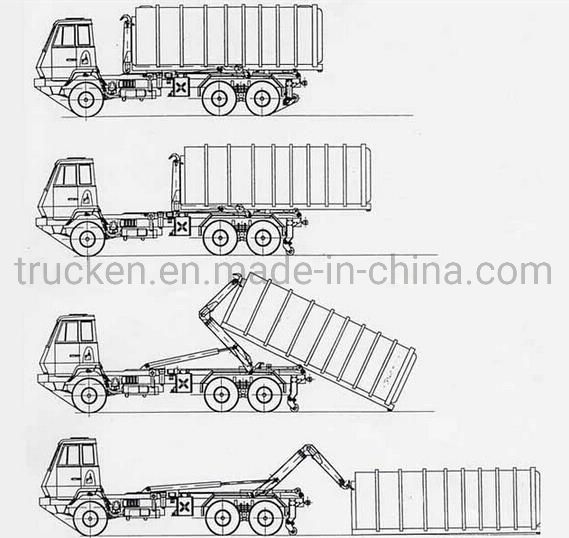

Working Show
