Model NO.
HY-400
Payload
20T
Fuel
Diesel
Drive Mode
4*4
Maximum Horsepower
<200hp
Condition
New
Net Weight
8300 Kg
Transmission
Full Hydraulic
Wheelbase
2250mm
Engine
Yunnei
Power
92kw
Cylinder
4
Transport Package
Container
Specification
7500*2700*3380 mm
Trademark
Hongyuan
Origin
China
HS Code
87054000
Production Capacity
1000 Set Per Month
After-sales Service:
Online Service
Warranty:
One Year
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type:
Automatic
Emission Standard:
Euro 4
Displacement:
8

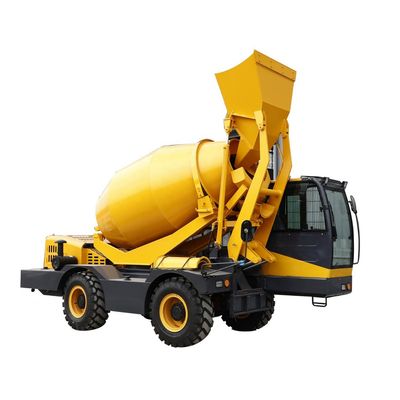

Hongyuan 4CBM Automatic Self Loading Mixer HY-400 in Chile
Description:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
| Name | Item | Specification | |||
| Net | 8300KG | ||||
| Gross | 12675KG | ||||
| Transmission | Full Hydraulic | ||||
| 4 wheels drive | |||||
| Brake | Air Brake | ||||
| Chassis | Off-road | ||||
| Tread | 1880 | ||||
| Wheelbase | 2250mm | ||||
| Loader Bucket | Capacity | 0.6m3 | |||
| Control | Hydraulic | ||||
| Tilt angle | 30% | ||||
| Speed | High | 0-25KM/H | |||
| Low | 0-9KM/H | ||||
| Mini turning radius | 6.5M/R | ||||
| Tyre model | 16/70-20 | ||||
| Engine | Type | Yuchai or Cummins | 4108 or 4BTA3.9-c125 | ||
| Rated Power/RPM | 95KW/2200RPM/125HP 2200RPM | ||||
| Max.Torque/RPM | 460N.M/1400RPM | ||||
| Cylinder | 4 | ||||
| Starter | Electric | ||||
| Cooling type | Water Cooling | ||||
| Maxing Drum | Drum capacity | 3.5m³ | |||
| Bank Angle | 16° | ||||
| Rotation Angle | 10-16R/min | ||||
| Chute | Swing Angle | ≥60° | |||
| Angle Control | Hydraulic | ||||
| Size | Long:176cm | ||||
| Short:40cm | |||||
| Loader | Weighing model | Computer control | |||
| Concrete standard | C15.C20.C25.C30 | ||||
| Accuracy | Cement | ≤±2%/time | |||
| Relative Error | ≤±3%/time | ||||
| Water | ≤±1%/time | ||||
| Additive | ≤±1%/time | ||||
| Admixture | ≤±2%/time | ||||
| Loader Control | Hydraulic 4 way stick | ||||
Picture&Detail:
