Model NO.
SJC
Certification
CE
Lift Mode
NONE
Voltage
220V
Load Capacity
4000kg
Diameter
6500mm
Power
0.55kw
Transmission mode
Pin-Gear drive mechanism
Control system
Button or remote control
Platform material
Patterm aluminum plate & Steel plate
Application
Display & Garage etc
Usage
Indoor & outdoor
Max. diameter
35m
Warranty
1 Year
Transport Package
Standard Export Package
Specification
8 CBM
Trademark
MORAL
Origin
Jinan, Shandong, China
HS Code
842890
Production Capacity
130set/Month
Type:
Parking Turntable
Working Mode:
Car Ride
Driving:
Pin-Gear Drive Mechanism
Falling Prevention Device:
NONE
The Vehicle Inlet and Outlet:
Center
Design:
Circle Turntable

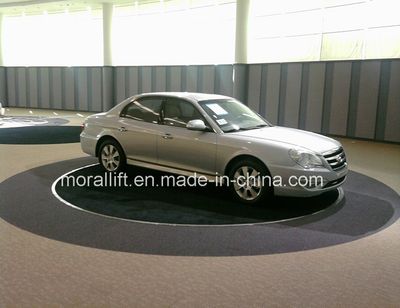

Automatic Smart Parking System Car Rotary Turntable
Description:
1. Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,long life and minimal wear and tear.
2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy
available.
3. Max. diameter 35000mm available
4. Made by steel, FOB Qingdao
5. Rotate any 360 degree
6. 5 years for main structure and 1year for parts!!!
technical data:
Directions for uses:
1.This machine is used where the car can not make a turn, and auto-revolving automobile exhibition platform.
2.The range of rotation: 0°- 360°
3.Automatic or manually control of rotation
No need to risk backing into traffic when you have a Car Turner vehicle turntable. Just drive on, push the remote control (like a garage door opener) and the car turntable rotates (~~you safely and easily, so you can drive off headfirst.Car turners help eliminate accidents and property damage, and protect children from harm. Turn your parking stress into pride of ownership with this practical and classy upgrade for
your home.No digging required as the car turner mounts on the surface of your existing driveway.
Product show:
The first picture show nylon support wheels.
The middle picture shows the motor and Pin-Gear drive system.
Third picture shows finishing top aluminum platform.
Parameter for reference:
Company Information:
Welcome to Moral lift,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,CAR TURNTABLE,PARKING LIFT,LOADING RAMP AND WORK PLATFORM. We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment.
Look forward to having opportunity to cooperate with all of you around the world! Contact us!!
Description:
1. Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,long life and minimal wear and tear.
2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy
available.
3. Max. diameter 35000mm available
4. Made by steel, FOB Qingdao
5. Rotate any 360 degree
6. 5 years for main structure and 1year for parts!!!
technical data:
| Item no. | Type | Car turntable |
| Single Vehicle Weight | ≤4000kg | |
| Turning plate diameter | 6500mm | |
| Drive Mode | Electric Motor | |
| Speed of turning plate | 2r/min(can be adjusted) | |
| Turning angle | 360 degree | |
| Power source | 220V,50HZ,3P/220V,50HZ,3P/other local power | |
| Power coverage | 0.55KW | |
| Control System | Push Button, Remote Control or PLC | |
Directions for uses:
1.This machine is used where the car can not make a turn, and auto-revolving automobile exhibition platform.
2.The range of rotation: 0°- 360°
3.Automatic or manually control of rotation
No need to risk backing into traffic when you have a Car Turner vehicle turntable. Just drive on, push the remote control (like a garage door opener) and the car turntable rotates (~~you safely and easily, so you can drive off headfirst.Car turners help eliminate accidents and property damage, and protect children from harm. Turn your parking stress into pride of ownership with this practical and classy upgrade for
your home.No digging required as the car turner mounts on the surface of your existing driveway.
Product show:
The first picture show nylon support wheels.
The middle picture shows the motor and Pin-Gear drive system.
Third picture shows finishing top aluminum platform.
Parameter for reference:
| Diameter (mm) | 4000 | 4500 | 5000 | 5500 | 6000 | 6500 | 7000 |
| Height (mm) | 120-280 | 120-280 | 120-280 | 120-280 | 120-280 | 120-280 | 120-280 |
| Speed of turning | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm |
| Load capacity (kg) | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 6000 |
| Power (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 |
| Transmission mode | Pin-Gear drive mechanism | ||||||
| Platform material | 1.22mm Density Fiberboard 2.steel plate 3.Pattern aluminum plate | ||||||
| Control system | 360 Rotation, button control / remote control / PLC control | ||||||
| Other diameter,height,speed of turning,load capacity,pls tell us, we can design and product it for you, thanks | |||||||
Company Information:
Welcome to Moral lift,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,CAR TURNTABLE,PARKING LIFT,LOADING RAMP AND WORK PLATFORM. We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment.
Look forward to having opportunity to cooperate with all of you around the world! Contact us!!
