CPCD70FD
No Cabin
Ordinary Combustion Forklift
Diesel Engine
5T - 10T
Diesel
600mm
3000~5000mm
New
3000mm
Fusen
Nude
7ton
China
84272090
Product Description
Product Description

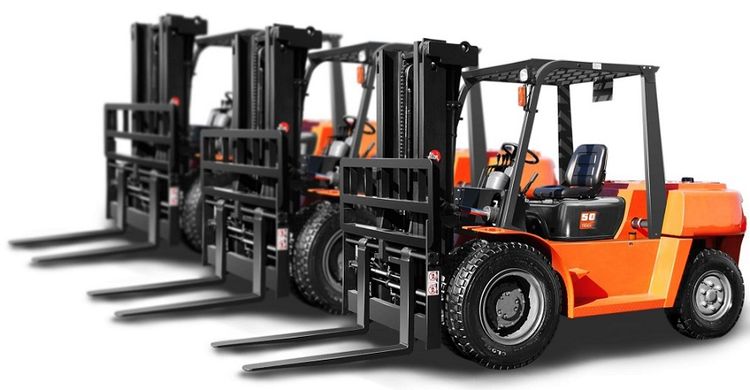

Diesel forklift truck2-stage 5M lifting mast, 1600mm forks
Engine: Japanese ISUZU 6BG1 84.6KW
Transmission: Japanese OKAMURA
Side shift
Technical Specification
| Forklift model | CPCD70FD | ||
| Overall height (forks raised with backrest) | mm | 4400 | |
| Max. lifting height | mm | 5000 | |
| Free lifting height | mm | 170 | |
| Overall height (forks lowered upright) | mm | 2500 | |
| Backrest height (from upper face of forks) | mm | 1400 | |
| Overall length (with forks) | mm | 4915 | |
| Overall length (without forks) | mm | 3715 | |
| Overall height (overhead guard) | mm | 2500 | |
| Overall width (not include special attachment) | mm | 2000 | |
| Fork length | mm | 1600 | |
| Fork thickness | mm | 65 | |
| Fork width | mm | 150 | |
| Lateral fork adjustment (outside of forks) | mm | 300-1600 | |
| Overhead guard clearance (from face of seat to guard) | mm | 1030 | |
| Coupler height | mm | 460 | |
| Front overhang length | mm | 645 | |
| Rear overhang length | mm | 870 | |
| Wheel base | mm | 2200 | |
| Tread (front) | mm | 1490 | |
| Tread (rear) | mm | 1520 | |
| Min. under-clearance (bottom of mast) | mm | 175 | |
| Min. turning radius | mm | 3400 | |
| Min. intersecting aisle | mm | 3100 | |
| Mast tilting angle | ° | 6\12 | |
| Specification | |||
| Load capacity | kg | 7000 | |
| Load center | mm | 600 | |
| Power type | Diesel | ||
| Tire type | Pneumatic | ||
| Lifting speed (with load / without load) | mm/s | 460/560 | 420/510 |
| Lowering speed (with load / without load) | mm/s | 600/300 | |
| Max. driving speed | km/h | 24/26 | 26/28 |
| Max. gradeability | % | 31/21 | |
| Brake distance | mm | <=6 | |
| Wheels (front / rear) | pcs | 4x/2 | |
| Tire specification (front / rear) | 8.25x20-14PR/8.25x15-14PR | ||
| Weight distribution with load(front/rear) | kgs | 14400/1810 | |
| Weight distribution without load(front/rear) | kgs | 3470/5740 | |
| Battery voltage / capacity | V/Ah | 24V/100x2 | |
| Service brake | Vacuum charging brake | ||
| Parking brake | Pliers plate type | ||
| Engine brand | Isuzu | ||
| Internal combustion engine model | 6BG1 | ||
| Displacement | L | 6.494 | |
| Rated output | Kw/rpm | 84.6/2200 | |
| Max. torque | Nm/rpm | 417/1500 | |
| Engine fuel tank capacity | L | 100 | |
| Transmission type (No. of speed Fwd/Rvs) | Hydraulic power shift | ||
| Total weight | Kgs | 9210 | |
We are a professional warehouse equipment supplier, product cover:
1. 1-45t Diesel Forklift Trucks
2. 1-3.5t Electric Forklift Trucks
3. 1-3.5t Gasoline Forklift Trucks
4. 1-3.5t LPG GAS Forklift Trucks
5. Empty Container Stackers
6. Heavy Container Stackers
7. Container Reach stackers
8. Electric Reach Trucks
9. Special Forklifts
10. Forklift Attachments
11. Aerial work platforms
12. Pallet trucks
13. Stackers
14. Components and Spare Parts
Excellent quality, competitive price and careful service! Welcome your inquiry!
