WT0401FT
24 Hours Online
Offer The Operation Manual and Video
＜5000L
ISO9000, CCC, CE
Euro 3/4/5/6
12 - 16m
Manual
3-5tons
Diesel
4×2
＜4L
New
Foton(HOWO, I-Suzu, Dongfeng )
N490qb
Wloong/Yixin Pump or Customized
MANTEN
Bulk Ship or Roro Ship or Container
5300X1750X2200 mm
Hubei
8705909990
Product Description
I. Products Description
1) High pressure, wide range of spraying and good flushing effect;
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation;
3) Pneumatic control and manual control system can realize two functions;
4) External sandblasting processing of tank, internal anti-corrosion treatment, outside surface adopts advanced
polyurethane paint, beautiful appearance;
5) with all kinds of truck model, which can fulfill your requirement;
6) the key parts adopt the world's top technology products;
7) based on strong technical support and top level technology make the trucks with high quality and more reliable;
8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down.
Optional small flow pump, spraying reel to wake insecticidal garden trees flowers and plants;
9) competitive price, cost-effective;
10) quick and efficient spare parts supply bring you more convenient;
11) fast delivery time, we can arrange production according to your needs exactly and quickly;
12) professional import and export dealing procedure, make customs clearance more high efficiency.
II. Products Parameters
There are Technique Parameters table above,if it didn't show,you can check it by computer or contact us!
We can offer diferent brand and volume capacity of the water tank truck!
III. Working State:
1. Self-absorption self-discharge function, vertical suction ≤ 7 meters;
2. After the sprint, sprinkler width ≥ 14 meters;
3. Side spray, rear work platform, with green water cannons, 360-degree rotation, range ≥ 28 meters;
4. High-pressure gun water can be adjusted into a columnar, foggy, heavy rain, light rain, drizzle;
5. Equipped with high-power dedicated sprinkler pump, with a fire connector, gravity valve, with self- priming function and
pressurized discharge function;
6. Optional fire pump, range ≤ 50 meters.
IV. Shipping & Delivery
The water tank truck can be delivery by nude packing,roro ship,bulk ship or container, you can choose the water
tank truck be waxed or not waxed.
V. About Us
1) High pressure, wide range of spraying and good flushing effect;
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation;
3) Pneumatic control and manual control system can realize two functions;
4) External sandblasting processing of tank, internal anti-corrosion treatment, outside surface adopts advanced
polyurethane paint, beautiful appearance;
5) with all kinds of truck model, which can fulfill your requirement;
6) the key parts adopt the world's top technology products;
7) based on strong technical support and top level technology make the trucks with high quality and more reliable;
8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down.
Optional small flow pump, spraying reel to wake insecticidal garden trees flowers and plants;
9) competitive price, cost-effective;
10) quick and efficient spare parts supply bring you more convenient;
11) fast delivery time, we can arrange production according to your needs exactly and quickly;
12) professional import and export dealing procedure, make customs clearance more high efficiency.
II. Products Parameters

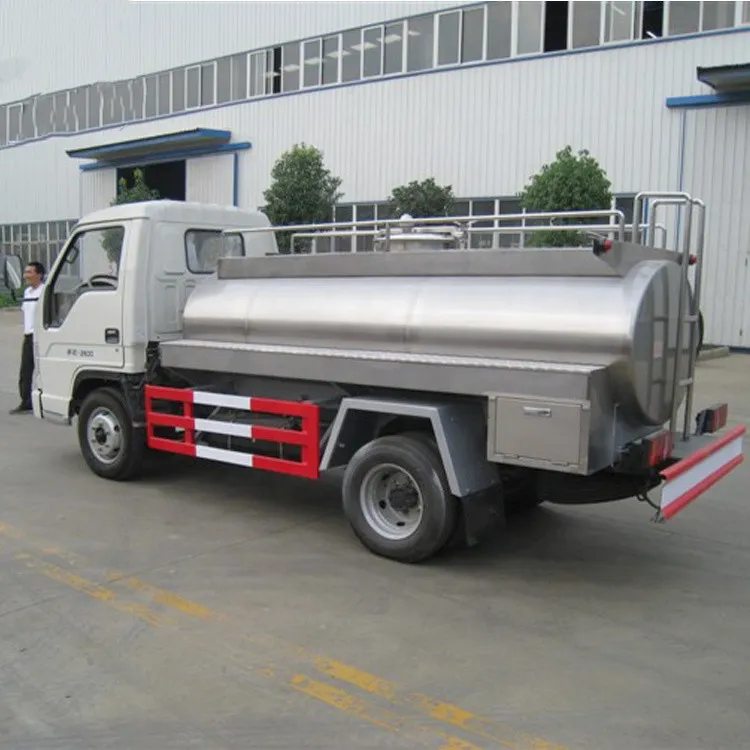

| Foton 3000Litres to 5000Litres Water Tank Truck | ||
| Chassis Model | Foton | |
| Chassis | Model | D1695, single row cabin |
| Driving type | 4x2, RHD/LHD | |
| Wheelbase | 3360 mm | |
| Dimension | 5300X1750X2200 mm | |
| Engine | Model | N490QB |
| Displacement | 5.19L | |
| Emission Standard | EURO III | |
| Axle | Front | 3Tons |
| Rear | 5Tons | |
| Tire | 6.50R16, 6+1 tyres including one spare tyre | |
| Transmission | 5F+1R | |
| Water Tank | Volume | 3000L to 5000L |
| Material | Stainless Steel S304-2B | |
| Shape | Ellipse | |
| Thickness | 4mm | |
| Pump | Chinese famous brand | |
We can offer diferent brand and volume capacity of the water tank truck!
III. Working State:
1. Self-absorption self-discharge function, vertical suction ≤ 7 meters;
2. After the sprint, sprinkler width ≥ 14 meters;
3. Side spray, rear work platform, with green water cannons, 360-degree rotation, range ≥ 28 meters;
4. High-pressure gun water can be adjusted into a columnar, foggy, heavy rain, light rain, drizzle;
5. Equipped with high-power dedicated sprinkler pump, with a fire connector, gravity valve, with self- priming function and
pressurized discharge function;
6. Optional fire pump, range ≤ 50 meters.
IV. Shipping & Delivery
The water tank truck can be delivery by nude packing,roro ship,bulk ship or container, you can choose the water
tank truck be waxed or not waxed.
