Ycr120d
CE, ISO 9001:2000, ISO 9001:2008
New
600~1200 mm
28 / 22 M
Drag Bit
Rotary
Crawler
Economical Drilling Rig
60 Kn.M
Cum.Mins Qsf3.8-115
86/2200 Kw/Rpm
59&50 M/Min
φ18&12 mm
600~1200 mm
28 / 22 M
19 T
15.7 T
11100*2600*3480 mm
φ299-4*7.65 M
φ299-3*7.65 M
Yuchai
Nude Packaged
11100*2600*3480 mm
Guangxi, China
8430509000
Product Description

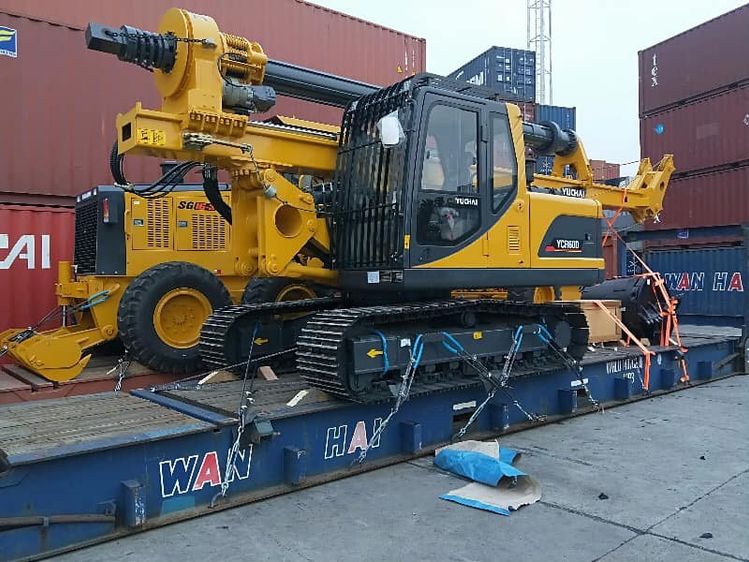

Yuchai 1500mm Plie Driver Machine Ycr120d Economical Rotary Drilling Rig
Mian patameters
Company information
| YUCHAI | ||||
| MODEL | YCR50 | YCR120 | YCR180 | YCR220 |
| Max. pile Diameter(mm) | 1200 | 1500 | 1800 | 2500 |
| Max. pile Depth(m) | 23 | 40 | 59.3 | 82 |
| Max.output torque(kN m) | 50 | 120 | 180 | 260 |
| Speed of rotationrpm | 6-35 | 8~28 | 7~26 | 6~24 |
| Engine model | CUMMINS B3.9 | CUMMINS 6BT5.9-150 | CUMMINS 6C8.3 | CUMMINS QSM11-C330 |
| Rated power (kw/rpm) | 86/2200 | 112/1950 | 186/2,200 | 246/2,100 |
| Working pressure(Mpa) | 34 | 34 | 34 | 34 |
| Diameter of the steel wire rope(mm) | 16 | 16 | 26 | 32 |
| The length of crawler (mm) | 4310 | 4446 | 5538 | 5816 |
| Track shoe width(mm) | 600 | 600 | 700 | 800 |
| Operating weight (t) | 18.2 | 35t | 64.2 | 81.1 |
| Transport Dimensions (LxWxH/mm) | 9950x2600x3480 | 12630x2990x3350 | 14320x3200x3512 | 16165x3300x3510 |
