LAT9400TJZG
Semi-Trailer
50T
ISO9001, CCC
7000-8000mm
Medium Duty
Steel Spring
Tank
4
16
Self-dumping
No ABS Anti-lock Braking System
Steel
New
2-5
Optional
Fuwa BPW etc
Tranport Fuel, Oil, etc
AOTONG
Nude
11800*2500*3800
China
87160000
Product Description
Best Quality White Color Carbo Steel Oil Tank Trailer
Model | LAT9400GRY |
Volume | 35000L-70000L |
Material | Carbon steel/Stainless steel/Alloy |
Usage | Fuel oil transporting |
Size | 11980*2500*3800 (mm) (Other dimensions optional) |
Tank body | 5mm |
End plate | 6mm |
Manhole | 500mm |
Discharge valve | Ball valve |
Discharge pipe | 4'' rubber hose |
Axles | 4 * 13ton capacity (Brand optional) |
Suspension | Mechanical suspension (Air suspension optional) |
Leaf spring | 10pcs |
Tire | 12R22.5 16pcs (Other size optional) |
Rim | 9.00-22.5 16pcs (Other size optional) |
Kin pin | 2''/3.5'' bolt type |
Landing gear | 28 Ton two speed |
Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
Electrical | LED light , 7 ways ,24V |
Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |

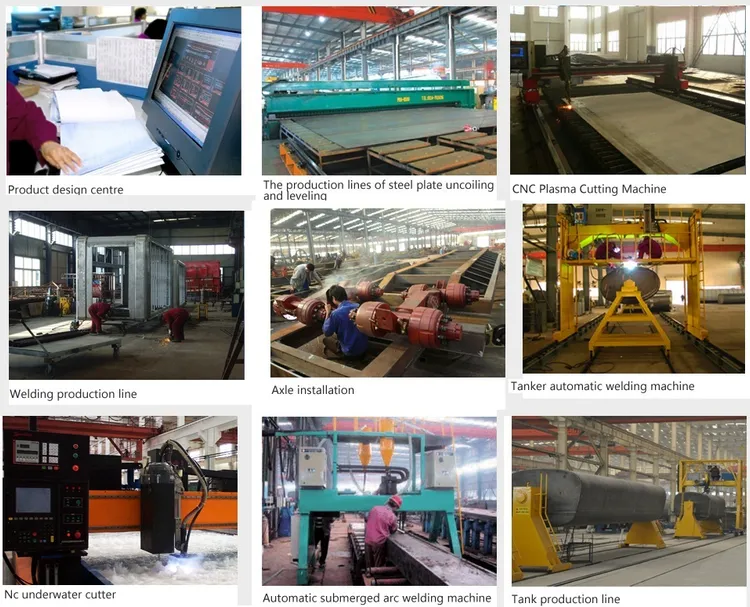

Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 1992 with more than 30 years producing experience and well-equipped testing facilities and strong technical force.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .
Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
According to client's speical requests for trailer, we can design full set drawings for clients.
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
