TCF-706
S Type
Resistance Strain
4-Wire
Analog Type
S-Type
Integration
Stainless Steel
IP67
RoHS
Customized
100kg-1000kg
BRANS
Cartons
M16*1.5
China
84239000
Product Description

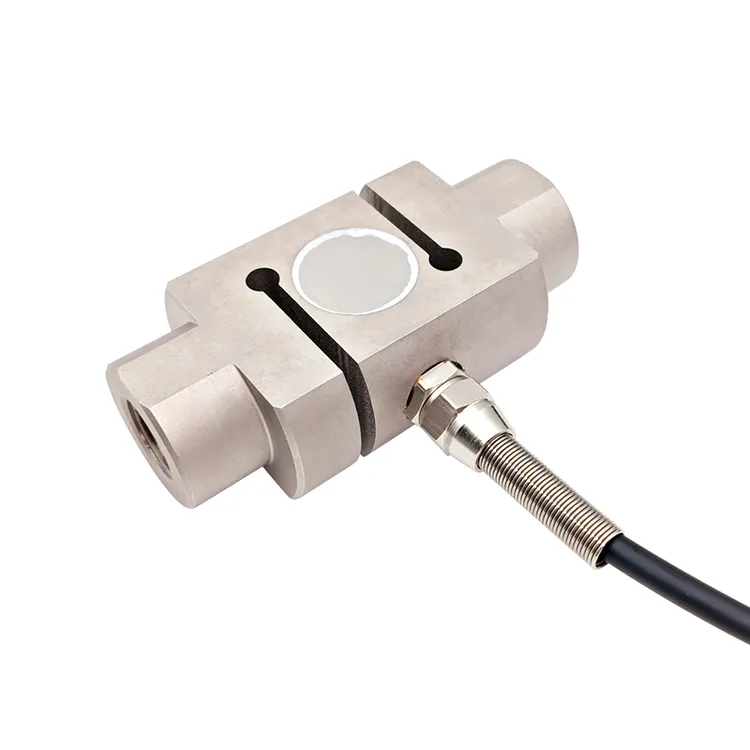

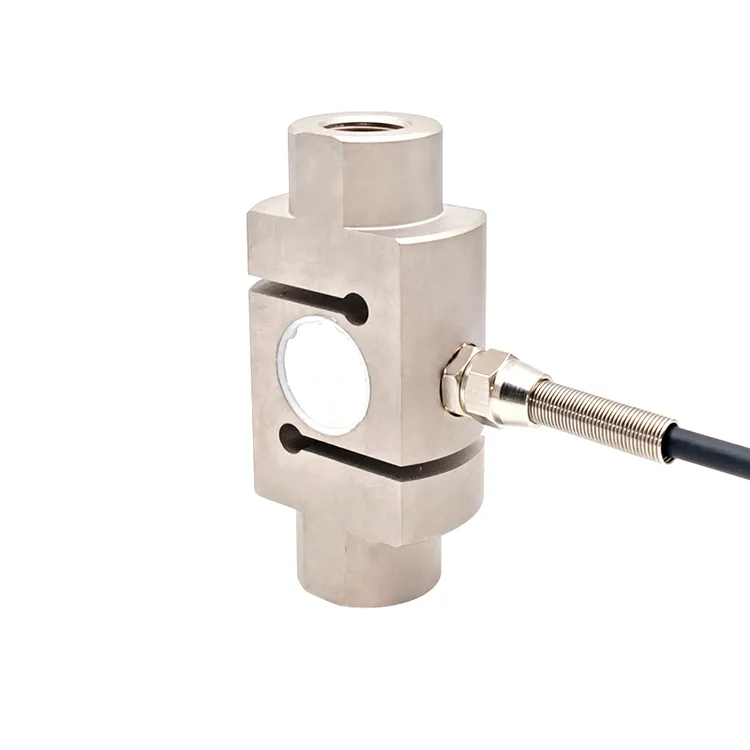

Name: S Beam Tension and Compression Load Cells with high accuracy load cells
Capacity:100,200,300,500,700,1000kg
Material/production class: Alloy steel or Stainless Steel/IP67
Advantages:
Fully sealed up to IP67
High Accuracy and Endurance
Built in Overload Protection
High Capacity / Low Capacity
Compact designs available for tight environment
In both Tension and Compression
Single Point Construction
Applications:
material tesdting machines,hanging scales,hopper weighing and other indutrial measuring system
Instruction:
Brans S-Beam Load Cells combine compact structure with enhanced precision and rigorous testing to form a reliable and durable tension and compression force transducer. The one-piece design achieves an accuracy of ±0.03 % full scale.
bransensor.en.made-in-china.com
Capacity:100,200,300,500,700,1000kg
Material/production class: Alloy steel or Stainless Steel/IP67
| 1 | Specifications | Technique |
| 2 | Capacity(kg) | 100,200,300,500,700,1000 |
| 3 | Rated output | 2.00±0.005mV/V |
| 4 | Zero balance | ±1.0% F.S. |
| 5 | Non-linearity | 0.03%F.S. |
| 6 | Hysteresis | ±0.03% F.S. |
| 7 | Repeatability | 0.02%F.S. |
| 8 | Creep(30min) | 0.05%F.S./10ºC |
| 9 | Temp.effect on output | 0.05%F.S./10ºC |
| 10 | Temp.effect on zero | 0.05%F.S./10ºC |
| 11 | Input impedance | 350±15Ω |
| 12 | Output impedance | 350±5Ω |
| 13 | Insulation | ≥5000MΩ/100VDC |
| 14 | Recommended excitation | 2-15V |
| 15 | Maximum excitation | 15V |
| 16 | Compensated temp range | -10~50ºC |
| 17 | Operation temp range | -20~60ºC |
| 18 | Safe overload | 120%F.S. |
| 19 | Ultimate overload | 200%F.S. |
| 20 | Cable size | Φ5.4×3000mm |
| 21 | Material | Alloy or Stainless Steel |
| 22 | IP Class | IP67 |
Advantages:
Fully sealed up to IP67
High Accuracy and Endurance
Built in Overload Protection
High Capacity / Low Capacity
Compact designs available for tight environment
In both Tension and Compression
Single Point Construction
Applications:
material tesdting machines,hanging scales,hopper weighing and other indutrial measuring system
Instruction:
Brans S-Beam Load Cells combine compact structure with enhanced precision and rigorous testing to form a reliable and durable tension and compression force transducer. The one-piece design achieves an accuracy of ±0.03 % full scale.
