ZDKH612
1 Year
New
90-120 mm
30 M
Diamond Bit
Compound
Down The Hole
Yu Chai
78 Kw
F=6~20
90-120 mm
30 M
60mm*2m, 76mm*2m
3inches;; 4inches;
0.8~1.6 MPa
10~15 M3/Min
25 Kn
0~2.5 Km/H
4540 Kg
4500*2150*2500mm
100 L
Container
4500*2150*2500mm
Zhejiang
Product Description

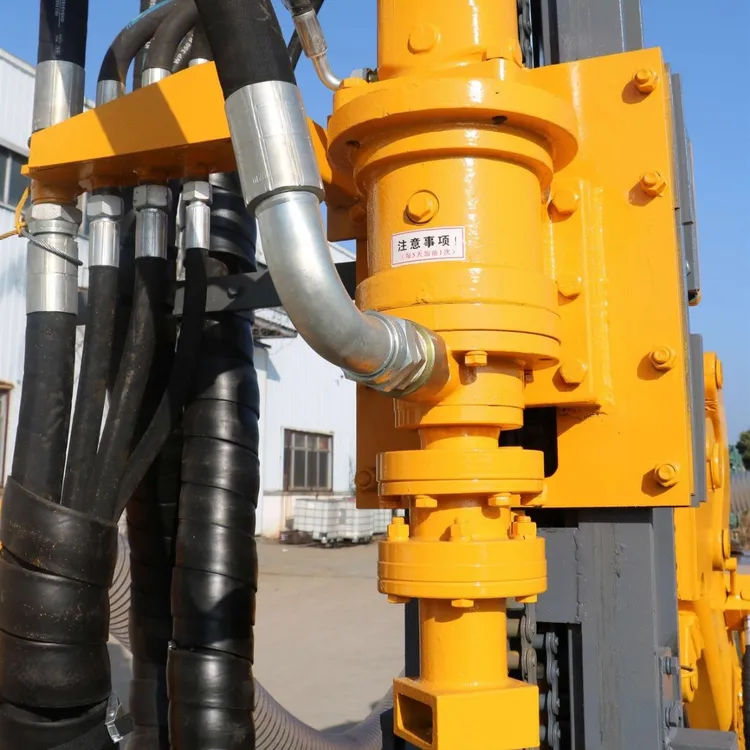

ZDKH612 Surface Down The Hole Drill Rig
Close to the real needs of customers is the basic principle of ZDKH612.Lower use and maintenance costs, simple and efficient operation, low power consumption, high reliability,
these characteristics that customers can really feel are the secret of the ZDKH612.
-----Compact dimensions
-----Extending undercarriage
-----Safety frame
-----Simple control
-----Easy maintenance
-----Versatility
-----Extending undercarriage
-----Safety frame
-----Simple control
-----Easy maintenance
-----Versatility
| Item | ZDKH612 | Description | Surface Down The Hole Drill Rig |
| Diesel engine | Yu chai | Lifting force | 25 kn |
| Rated Power | 78 KW | Method of Feed | Oil cylinder +roller chain |
| Drilling hardness | f=6~20 | Travelling speed | 0~2.5 km/h |
| Drilling diameter | 90-120 mm | Climbing capacity | 25° |
| Depth of economical drilling | 30 m | Ground clearance | 254 mm |
| Suitable Drilling rod | φ60mm*2m / φ76mm*2m | Weight of complete machine | 4540 kg |
| Suitable DTH hammer | 3" /4" | Outer dimensions(L*W*H) | 4500*2150*2500mm |
| Working Pressure | 0.8~1.6 Mpa | Volume of diesel oil tank | 100 L |
| Air consumption | 10~15 m³/min | Method of dust collecting | 8 Core Dry type |
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
