Tractor Mounted Log Skidding Grapple forest
SKidder is an excellent tool for small and medium-sized tractors to haul full trees or lift and move logs.
The skidder is equipped with a hydraulic telescopic arm which allows you to reach the logs and pull them in close to the tractor before skidding, improving your center of gravity and tractor traction. It also comes with a hydraulic motor to rotate the grapple 1 full turn in order to precisely lign up the grapple with the log.
As an extra option to the skidder we offer remote controlled winch. With the winch also comes the protective screen to protect driver and the tractor. Accessories
- Rotary oil motor for claw rotation
- Transport lock for grapple
- Hydraulic control valve
| Model | LSG1500 |
| Lift Capacity | 1500kg |
| Rotator | 3 ton |
| Grapple | LG019 |
| Max. Open | 1260mm |
| Grapple Area | 0.19 m2 |
| Max. Pressure | 20Mpa |
| Linkage | Cat II & Euro-Tractor Front |
| Tractor | 50-90HP |
| Weight | 265kg |
| Packing size | 1200*1100*1350mm(2pcs) |
Detail image
After sale
we will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

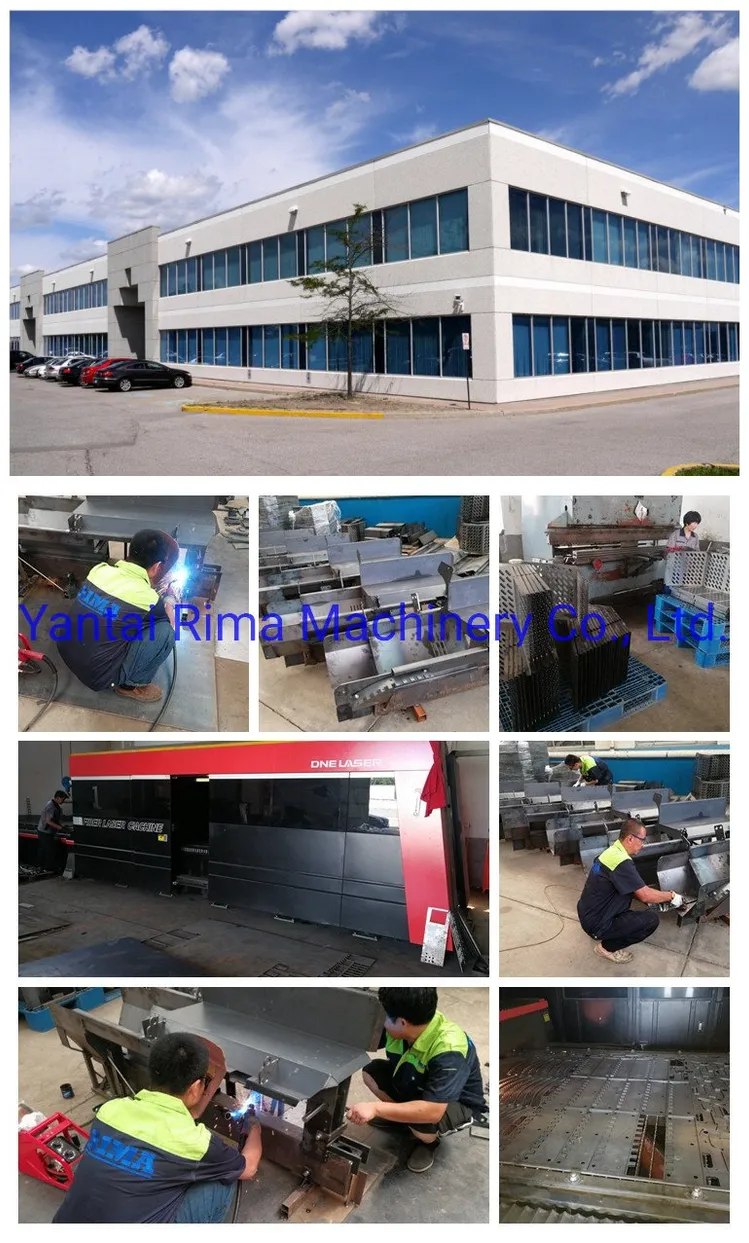

Company information
Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
