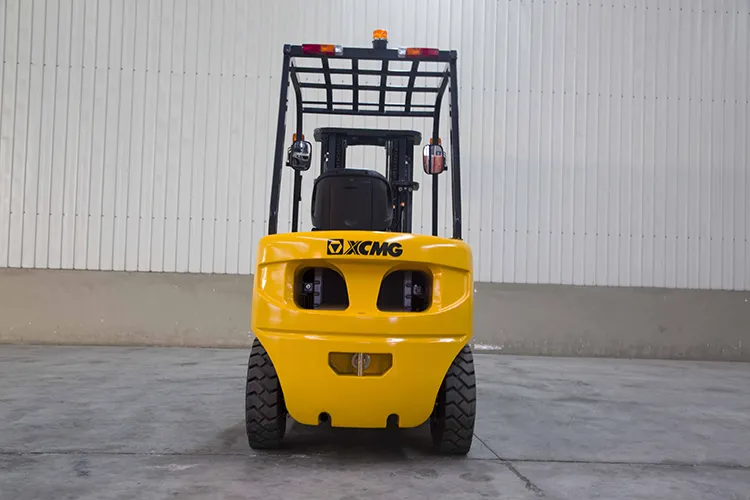

XCMG Official 1-3.5 Ton AC 4-Wheel Powered Electric Forklift Truck

XCMG Official 1.5-3.5ton AC 4-Wheel Powered Electric Forklift Truck.


Flexible and efficient operation

The whole machine is compact, small in shape and only 5.1 m on the turning radius.
The core technologies such as proprietary flow sharing, the key position of the cargo fork, and the microdynamic control are fast, the operation speed is good, and the efficiency is high.

Safe and reliable, use save heart
After years of crane development experience, the control system of the industry product is perfected and upgraded, and the maximum realization is the active protection.
Industry top allocation, professional match optimization and systematic evaluation test, effectively guarantee the reliability of the product.

Economic and environmental protection, the cost savings
It has been used for many years, and the whole machine is light weight and low fuel consumption.
The proprietary door is able to recover the technology and save 20% (optional) fuel economy.

People-oriented, riding comfortably
The professional design and man-machine engineering simulation analysis, reasonable decorate a variety of climbing, access channel and manipulate the position, to achieve the perfect combination of functionality and aesthetics, pleasing generous, easy to use.
Panorama driver room, high power cooling air conditioning, high definition rebus image (optional), with human-centered detail design, riding in comfort.




General	1	Manufacturer
	2	Model		FD15T-I	FD18T-I	FD15T-JB	FD18T-JB	FD15T-JC	FD18T-JC
				(FD15-I)	(FD18-I)	(FD15-JB)	(FD18-JB)	(FD15-JC)	(FD18-JC)
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	1500	1800	1500	1800	1500	1800
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	100
	8	Fork Size (L×W×T)	mm	920×120×35	1070×120×40	920×120×35	1070×120×40	920×120×35	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	409
	11	Rear Overhang	X2(mm)	450	490	450	490	450	490
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110
	13	Length to Face of Fork (Without Fork)	L1(mm)	2250	2290	2250	2290	2250	2290
	14	Overall Width	B1(mm)	1090
	15	Mast Lowered Height	H1(mm)	2025
	16	Mast Extended Height (With Backrest)	H4(mm)	4055
	17	Overhead Guard Height	H5(mm)	2180
	18	Turning Radius (Outside)	Wa(mm)	2030	2060	2030	2060	2030	2060
	19	Min.Aisle width for pallets	mm	3560	3740	3560	3740	3560	3740
Performance	20	Travel Speed (No Load)	km/h	14.5
	21	Lifting Speed (Full Load)	mm/sec	560
	22	Lowering Speed  (Full Load)	mm/sec	450
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17(14.5)		20.5(17.5)		21(18)
	24	Max.Gradeability (Full Load)	%	20
Chassis	25	Tyre (Front x 2)	mm	6.50-10-10PR
	26	Tyre (Rear x 2)	mm	5.00-8-10PR
	27	Front Tread	B2(mm)	890
	28	Rear Tread	B3(mm)	920
	29	Wheelbase	Y(mm)	1410
Weight	30	Total Weight	kg	2590	2890	2590	2890	2590	2890
	31	Front Axle Weight Distribution (Full Load)	kg	3610	4055	3610	4055	3610	4055
	32	Rear Axle Weight Distribution (Full Load)	kg	480	545	480	545	480	545
	33	Front Axle Weight Distribution (No Load)	kg	1160	1170	1160	1170	1160	1170
	34	Rear Axle Weight Distribution (No Load)	kg	1430	1630	1430	1630	1430	1630
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		NB485BPG		C240PKJ30 (Eu)		4TNE92 (Eu & EPA)
	37	Engine Manufacturer		XINCHAI		ISUZU		YANMAR
	38	Rated Output / r.p.m.	kw	30/2600		34.5/2500		33/2450
	39	Rated Torque / r.p.m.	N·m	131/1800		139/1800		150/1600
	40	No.of Cylinder		4
	41	Bore x Stroke	mm	85×100		86×102		92×110
	42	Displacement	cc	2270		2369		2659
	43	Fuel Tank Capacity	L	45
	44	Transmission Type		Hydraulic
	45	Transmission Stage (FWD/RVS)		1/1(2/2)
	46	Operating Pressure (For Attachments)	Mpa	14.5



Model		FB15-AZ1	FB20-AZ1	FB25-AZ1	FB30-AZ1	FB35-AZ1	FB45-AZ1	FB50-AZ1
Rated Load Capacity	Q(kg)	1500	2000	2500	3000	3500	4500	5000
Load Centre	C(mm)	500	500		500		500
Lift Height	H3(mm)	3000	3000		3000		3000
Free Lift	H2(mm)	100	100	100	100	100	84
Fork Size (L×W×T)	L/W/T(mm)	920×120×35	1070×120×40	1070×120×40	1070×125×45	1070×125×50	1070×150×50
F/B(α°/β°)	Deg	6°/12°	6°/12°		6°/12°		6°/10°
Length (To Fork Face)	L1(mm)	2150	2380	2380	2475	2535	2940
Width	B1(mm)	1090	1150	1150	1225	1225	1612
Mast Lowered Height	H1(mm)	2025	2055	2055	2070	2070	2250
Mast Extended Height (With Backrest)	H4(mm)	4055	4070	4070	4070	4070	4260
Overhead Guard Height	H5(mm)	2125	2125	2125	2125	2125	2300
Turning Radius	Wa(mm)	1995	2080	2080	2215	2280	2705
Fork Overhang (Wheel Center to Fork Face)	X(mm)	409	478	478	485	485	550
Front Tread	B2(mm)	890	970	970	1000	1000	1300
Rear Tread	B3(mm)	920	950	950	980	980	1200
Ground Clearance	H6(mm)	110	120	120	130	130	125
Wheelbase	Y(mm)	1380	1500	1500	1600	1600	2000
Fork Spread (Min/Max)	mm	240/970	250/1040	250/1040	250/1100	250/1100	250/1380
Working Aisle Width With Pallet (1000×1200,1200 Lengthways)	Ast(mm)	3605	3830	3830	3970	4035	4655
Working Aisle Width With Pallet (800×1200,800 Lengthways)	Ast(mm)	3805	3960	3960	4100	4165	12.5
Travel Speed (Full Load)	km/h	12	12		12		13.5
Travel Speed (No Load)	km/h	13	13		13		290	270
Lifting Speed (Full Load)	mm/s	280	300	300	280	280	400	380
Lifting Speed (No Load)	mm/s	380	420	420	440	440	12
Max.Gradeability (Full Load)	%	18	18		16	12	13
Max.Gradeability (No Load)	%	20	20		18	13	7020	7280
Total Weight (Include Battery Box)	kg	3060	4160	4660	5160	5660	28×12.5-15
Tyre (Front x 2)		6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28×9-15-12PR	28×9-15-12PR	21×8-9
Tyre (Rear x 2)		5.00-8-8PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	11×2
Diver Motor	kw	7.5	11	11	12	12	25.4
Pump Motor	kw	9.2	11	11	12	12	80/840
Battery (Standard)	V/Ah	48/450	48/620	48/620	80/500	80/500	AC
Controller  Type		AC	AC		AC		ZAPI
Controller Manufacturer		ZAPI	ZAPI		ZAPI		20
