Factory Sale Agricultural Tractors 40HP Two Wheels Drive China Farm Land Tractors

Lowest price 40hp 2wd Wheel Tractor Advantages and Characteristics

Power: 25hp to 40hp
Engine: Laidong 3/ 4 cylinder diesel engine
Drive type: 2 / 4 wheel drive
Steering type: Hydraulic power steering
Clutch: Dual function clutch
Transmission type: F8+R2 collar shift gear or F16+R4 creeper gears
Instrument panel: Combined instrument panel or seperated instrument panel
Linkage: Category I rear-mounted 3-point linkage
Lifter: Draft and Positional adjustable
Front tyre: 6.00-16 Rear tyre: 9.5-24 (big tyre for optional)

40HP 2WD Farm Tractor

40HP have both 2WD and 4WD type wheel farm tractor for dry and paddy field and for transportation. It can be used for various farm working with many implements, such as plough, harrow, harvest machine, flail mower, trailer etc.

A). Assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular on international market.

B). With the characteristics of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment protected, it is a right tractor for family and farm for agriculture and gardening.

C). With front loader and back hoe, tractor can do various kind of job engineering

D). With the fluid driving on whole structure, it has characteristics as compact structure and agile operation, which leads it work freely in incommodious field where large machine can not achieve.

E). The working implements are connected with tractor in quick linkage type, and hydraulic pipes are connected by quick coupling, which are easy for assembly.

F). The tractor hydraulic system affords power to front loader, back hoe and tractor lift equipments. Hydraulic oil tank is designed according to the international standard, which is easy for maintenance.

Technical Data


Model			TS400
General Specifications	Type		4*2
	Overall dimensions L*W*H(mm)		3280*1450*2110
	Constructional weight(kg)		1500
	Rated traction force(kn)		7.8
	Wheel base(mm)		1960
	Front wheel tread(mm)		1121-1527(Adjustable)
	Rear wheel tread(mm)		1104-1504(Adjustable)
	Min. land clearance(mm)		485
	Min. quality in use(kg)		1630
	Front wheel tyre size		6.0-16
	Rear wheel tyre size		11.2-28
	Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking)		3500/3200
	Theoretical speed(km/h)		Creeper		Shuttle gear
	I		0.41		2.29
	II		0.48		2.67
	III		0.77		4.35
	IV		1.23		6.89
	V		1.6		8.96
	VI		1.86		10.45
	VII		3.03		17.02
	VIII		4.81		26.99
	Reverse I		0.35
	Reverse II		1.38
Engine	Model		JD490T
	Type		Inline,Vertical,Water-cooling,Four-stroke
	12 hours power(kw)		29.4
	Rated speed(r/min)		2300
	Fuel consumption(g/kw.h)		<=245
	Max.torque(n.m)		>=165
	Speed of Max.torque(r/min)		<=1725
	Bore stroke(mm)		Φ90*105
	Diesel consumption(g/kw.h)		<=2.04
	Starting mode		Electric start
Break System	Service brake		Mechancial\Closed\Shoe
	Parking brake		Locking footplate type
Transmission	Clutch		Dry\One stage
	Gear box		Spur gear(4+1)*2 plain compound type
	Steering		Mechancial steering
	Steering type		Front wheel steering
	Main drive		Spiral bevel gear
	Differential mechanism		Two planet bevel gear,closed
	Final drive		Externalgraring straight tooth type
Operating System	Lifter tilling depth control		Position adjustable
	Max.lifting capacity(kn)		>=6.62
	Suspension type		Postposition\Three-point\I category
	Speed of P.T.O.(r/min)		(540,1000) or (720,1000) or (540,720)
	Type of P.T.O.		Semi-independent
	Traction Equipment		Stationary type or swing type
Optional Disposition			Air brake,dural-stage clutch \new hood, rear ballast,ZN490BT engine

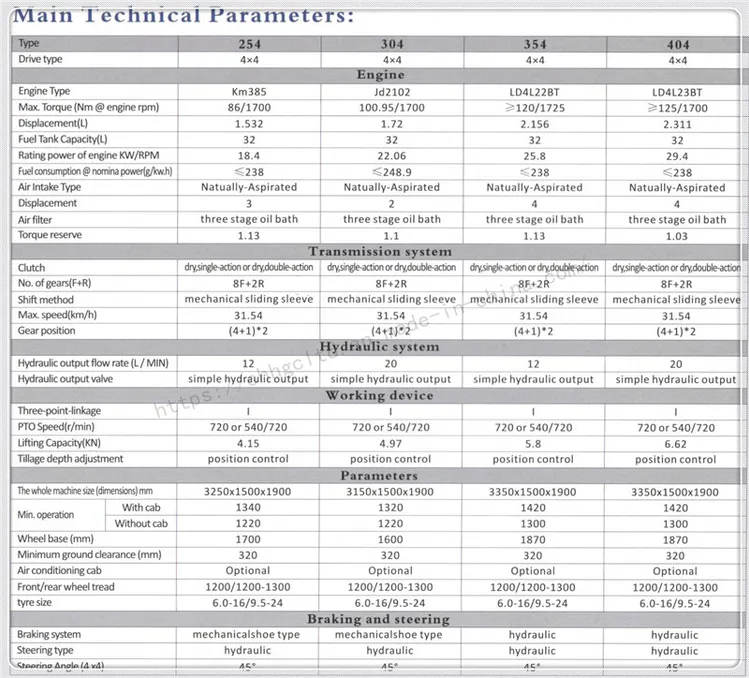

Technical Parameters





Production Workshop

Certificate


Business Partners

FAQ

Q1. How to ship the Tractors?
A:    By container, bulk ship, RORO.

Q2. Do you have different horsepower tractors?
A:   Yes,we supply different model tractors and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model tractors do you supply?
A:  We supply all kinds of tractors such as walking tractors, wheel tractors etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
Remark:
The hp we can supply is 25-145hp, if you need one of them, please contact with us.
