FD50/FD70
1 Year / 2000 Working Hours
Not Adjustable
Diesel Forklift
Diesel Engine
7ton
Diesel
>500mm
3000mm
New
1220*150*70mm
9750kg
Chinese Engine/Isuzu
2250mm
Could Be Designed by Buyer
205mm
Pneumatic
2430mm
LTMG
Container
3440*2010*2500mm
China
8427209000
Product Description
LTMG 5ton 7ton Diesel Counterbalance Forklift Truck
with Japan ISUZU Engine and Joystick
Our forklift truck is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The Specification of 7 Ton Diesel Forklift
Packaging & Shipping

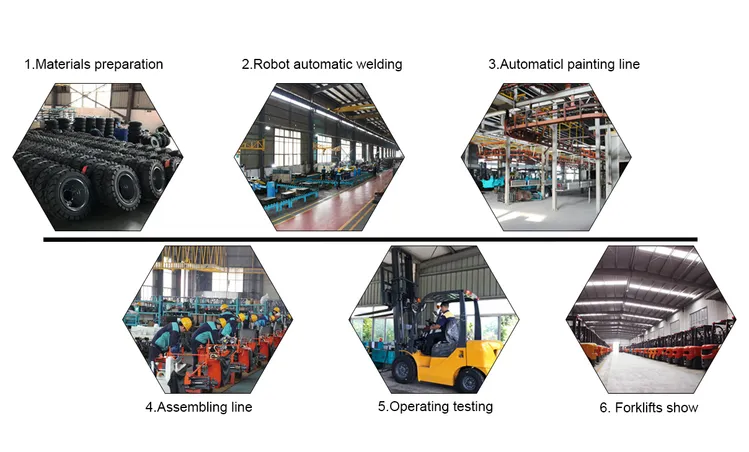

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts
Website:
ltmamachine.en.made-in-china.com
Customers Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
After sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
with Japan ISUZU Engine and Joystick
Our forklift truck is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The Specification of 7 Ton Diesel Forklift
| Manufacturer | LTMG | LTMG | |
| Model | FD50 | FD70 | |
| Load capacity kg | 5000 | 7000 | |
| Load center mm | 500 | 600 | |
| Power unit | Diesel | Diesel | |
| Operator type | Driver/seat | Driver/seat | |
| Tire type | Pnenumatic | Pnenumatic | |
| Wheel Front/rear | 2/2 | 4/2 | |
| Max. lifting height mm | 3000 | 3000 | |
| Free lift mm | 140 | 210 | |
| Fork size L*W*T mm | 1070*150*50 | 1220*150*70 | |
| Tilt range Mast forward/backward deg | 6/12 | 6/12 | |
| Overall length(without fork) mm | 3245 | 3565 | |
| Total width mm | 1430 | 2010 | |
| Mast height (fork lowering) mm | 2270 | 2500 | |
| Overall height fork raised with backrest mm | 4110 | 4415 | |
| Height to head guard mm | 2265 | 2430 | |
| Turning raduis(outside) mm | 2910 | 3350 | |
| Front face of fork to front axle mm | 615 | 620 | |
| Min. right angle stacking aisle mm | 2960 | 3040 | |
| Speed | Max Travelling full/no load km/h | 18/19 | 26/30 |
| Lifting full/no load mm/s | 380/430 | 450/550 | |
| Lowering full/no load mm/s | 380/340 | 450/500 | |
| Max.drawbar pull | full/no load kg | 4500/2000 | 5400/2200 |
| Gradeability at 1.6km/h | full/no load % | 25 | 29 |
| Truck weight kg | 8150 | 9750 | |
| Weight distribution | Full load front/rear kg | 10280/1790 | 14520/1930 |
| No load front/rear kg | 3330/4500 | 3760/5690 | |
| Tires Number front/rear | 2/2 | 4/2 | |
| Tires Model | front axle | 300-15-18PR | 8.25x15-14PR |
| rear axle | 7.00-12-12PR | 8.25x15-14PR | |
| Wheelbase mm | 2000 | 2250 | |
| Tread Front/rear mm | 1180/1190 | 1470/1700 | |
| Ground clearence | At lowest point(mast) mm | 100 | 190 |
| Frame mm | 240 | 230 | |
| Service brake | Power brake | power brake | |
| Parking brake | Mechanical-hand lever | Mechanical-hand lever | |
| Battery | Voltage/capacity V/AH | 2-12/80 | 2x12V-80AH |
| Engine Model | ISUZU 6bg1 | ISUZU 6BG1 | |
| Rated power kw/rpm | 82.3/2000 | 82.3/2000 | |
| Rated torque N.m/rpm | 416/1400-1600 | 418/1500 | |
| Number of cylinders | 6 | 6 | |
| Placement L | 6.494 | 6.494 | |
| Fuel tank capacity L | 140 | 140 | |
| Hydraulic system pressure kg/cm² | 200 | 200 | |
Packaging & Shipping
Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts
Website:
ltmamachine.en.made-in-china.com
Customers Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
After sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
