Specifications:
Industry leading working envelope
Articulating boom
Multiple job site application, indoors and outdoors
high and low operation panel
Hydraulic outriggers and outrigger interlocks
Hydraulic surge brakes
350°non-continuous turntable rotation
Made of high strength steel, famous china brand
All pipelines put inside the machine, to aviod tangled sun and rain or other objects
Protective covers for oil-tank, emergency controls and etc.

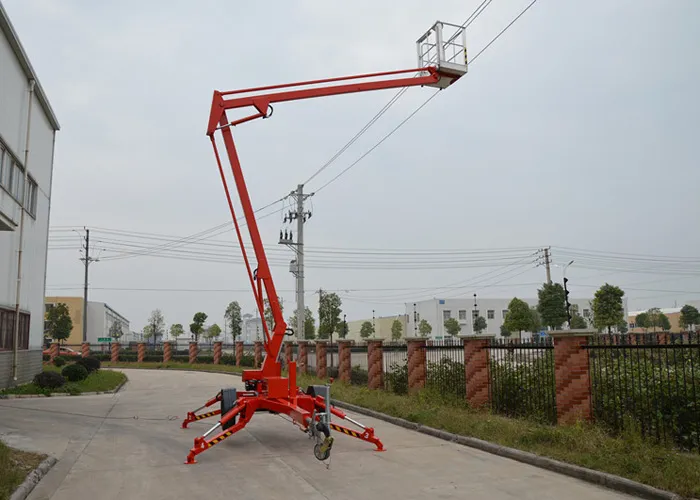

Description | KD-P12 |
Max. working height | 12m |
Max. platform height | 10m |
Loading capacity | 200kgs |
Lateral Outreach | 4.5m |
Jib rotation | 100° |
Turntable rotation | 350° |
Size of platform | 0.9×0.8×1.1m |
Overall stowed length | 5.85m |
Overall stowed width | 1.7m |
Overall stowed height | 2.26m |
Total weight | 1180kgs |
Traveling speed | 35km/h |
standard power source | Electric 220V AC power |
optional power sources | Diesel engine or Battery |
