XY-1A/XY-1B/XY-100/XY-150/XY-200
Technical Support
1 Year
ISO 9001:2000
New
100-150mm
100-150m
Diamond Bit
Rotary
Two Wheels Trailer
Core Sampling/Borehole/Water Well/Piling/Auger
Sliding Skid Base/Crawler Chassis/Wheels
Bohwa
Wooden Case
2000x1000x1500mm
China
8430490000
Product Description

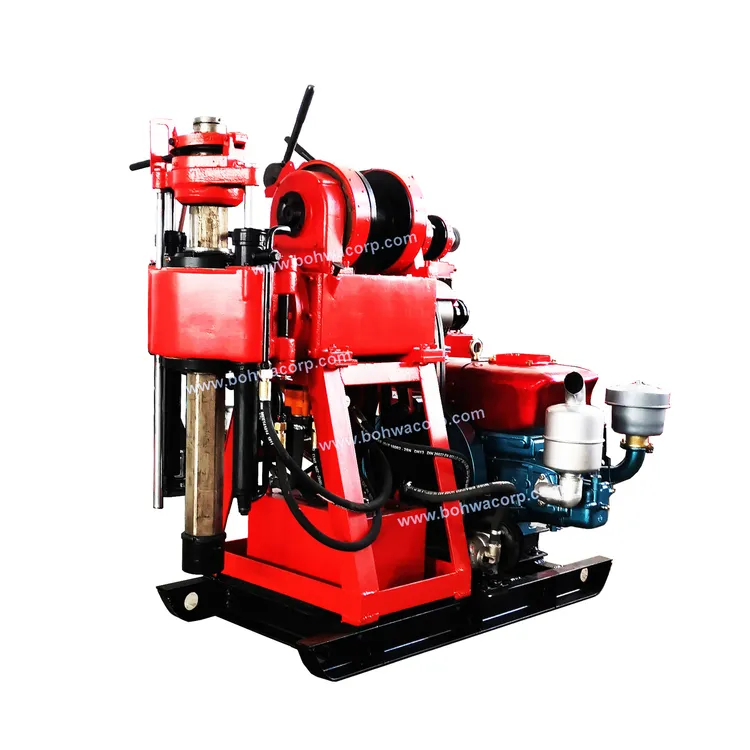

Wheels Trailer Soil Sampling Geological Exploration Drilling Rig
I. Specification:
XY-1 Series are spindle core geotechnical and geophysical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:
- Soil sampling with auger drilling.
- Anchor drilling
- Micro piling.
- Geothermal drilling.
- Core drilling with conventional coring tools.
- Water well drilling by carbide and rotary drilling.
| Model No. | XY-1A | XY-1B | XY-1G |
| Borehole Dia. | 150mm, 75mm | ||
| Borehole Depth | 30m, 150m | ||
| Rotator | Clockwise Rotation and Anti-clockwise Rotation | Clockwise Rotation and Anti-clockwise Rotation | |
| Spindle Speed | 500mm | ||
| Rated Pulling Force | 25KN | ||
| Drill Pipes Clamping | Ball Clamp Holder | Hydraulic Clamp Holder | |
| Sliding Base | Hydraulic Sliding Base | ||
| Winch Lifting Force | 15KN | ||
| Dimensions | 2000x990x1300mm | ||
| Weight | 600kg | ||
We have different models of drilling rigs in different drilling capacity (drilling hole depth and diameter). Related drilling tools (pipes/SPT/CPT tools) are optional.
II. Photos:
III. Related Drilling Tools:
