FB10 FB 15 FB20 FB25 FB30
Free Parts Within Warranty
One Year
Not Adjustable
Powered Pallet Truck
AC Motor
1T - 5T
Electric
500mm
3000~5000mm
New
Optional
Duplex / Triplex Is Optional
1070mm*150mm*45mm
80V/500ah
120mm
1600mm
American Curtis or Zapi
2140mm
6/12
Side Shifter, Solid Tires, Cab, Fork Positioneretc
LTMG
Container
2510*1225*2190mm
China
8427109000
Product Description

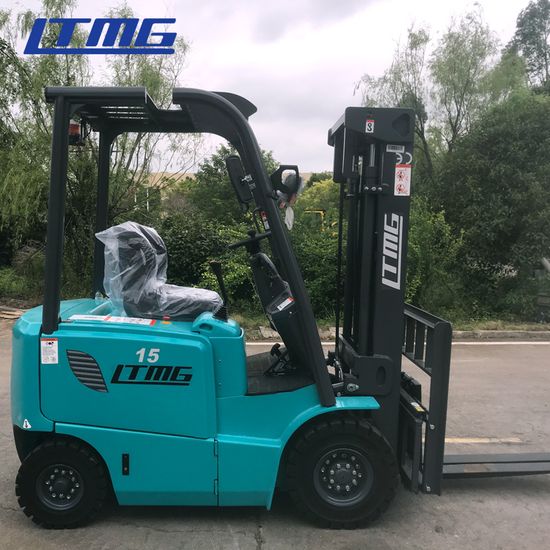

| Specification of 1.5 Ton Electric Forklift | ||||
| Features | Manufacturer | LTMG | ||
| Model | FB15 | |||
| Load capacity | kg | 1500 | ||
| Load center | mm | 500 | ||
| Power unit | Battery | |||
| Operator type | Driver/seat | |||
| Tire type | Front/rear | Pneumatic tires | ||
| Wheel | Number Front/rear | 2X/2 | ||
| Dimension | Max. lifting height | mm | 3000 | |
| Free lift | mm | 165 | ||
| Fork size | L*W*T | mm | 1070*125*45 | |
| Tilt range | Mast forward/backward | deg | 6/12 | |
| Overall length(without fork) | mm | 2510 | ||
| Total width | mm | 1225 | ||
| Mast height (fork lowering) | mm | 2075 | ||
| Overall height fork raised | With backrest | mm | 4260 | |
| Height to head guard | mm | 2190 | ||
| Turning raduis(outside) | mm | 2140 | ||
| Front face of fork to front axle | mm | 485 | ||
| Min. right angle stacking aisle | not add load length&clearence | mm | 2080 | |
| Performance | Speed | Max Travelling full/no load | km/h | 13.5/15 |
| Lifting full load | mm/s | 290 | ||
| Lifting no load | mm/s | 490 | ||
| Gradeability | Full load | % | 12.5 | |
| Weight | Truck weight | kg | 4660 | |
| Weight distribution | Full load front/rear | kg | 3635/555 | |
| No load front/rear | kg | 1885/2775 | ||
| Frame | Tires | Number | front/rear | 2/2 |
| Model | front axle | 28x9-15-12PR | ||
| rear axle | 18x7-8-14PR | |||
| Wheel base | mm | 1600 | ||
| Tread | Front/rear | mm | 1000/950 | |
| Ground clearence | At lowest point(mast) | mm | 140 | |
| Frame | mm | 120 | ||
| Brake | Service brake | Hydraulic-foot peda | ||
| Parking brake | Mechanical lever | |||
| Electric motor and controller | Battery | Voltage/capacity | V/AH/5hr | 80V-500 |
| Weight (standard) | kg | 1220 | ||
| Electric motor | Driving motor | kw/60min | 11 | |
| Hydraulic driving motor | kw/5min | 10 | ||
| Control type | Electric driving | AC | ||
| Operating pressure | Hydraulic system pressure | kg/cm² | 175 | |
