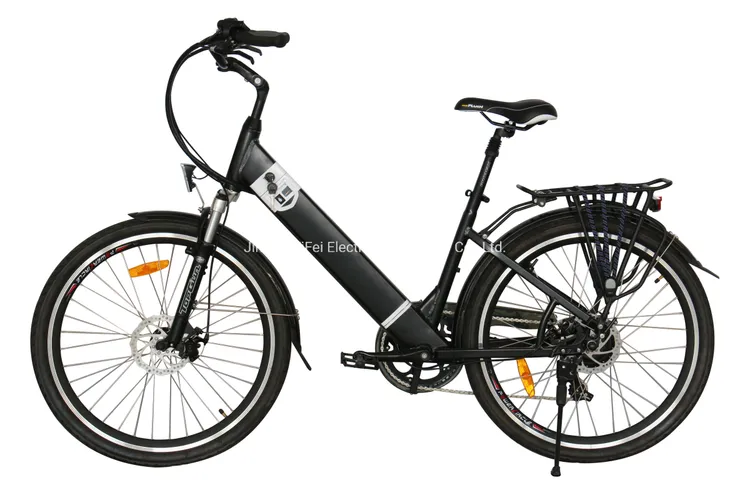

TDF02Z
200-250W
36V
Lithium Battery
26"
Brushless
Aluminum Alloy
CE, EN15194
Unfolded
20-40km/h
31-60km
Customized
YiFei
One PC in an Export Carton
145*26*74cm
Jinhua
8711901010
Product Description
Model : TDF02Z
Certification : CE
Detail specs.
Frame : 6061#Aluminum alloy
Battery : Lithium-ion 36V/10Ah
Charger : AC 110V-240V
Motor : Rear brushless motor 36V/250W
Display : Multi-function LED display
PAS : Intelligent 1:1 (Throttle on request)
Brake lever : TEKTRO brand
Brakes : Front & Rear DISC brake
Lights : Spanninga LED lights
Fork : TGS Aluminum suspension
Rim : Aluminum double wall
Wheel : Kenda 26 inch X 1.95
Spokes : Nipples and spokes in stainless steel
Seat : VELO brand Ergonomic and soft
Seat post : Aluminum foldable
Gear set : SHIMANO 7 gears; derailleur protector included
Pedals : Wellgo City type
Mudguards : PVC in black
Parameters:
Max Speed : 25km/h(EU),32km/h(US & CA)
Mileage per charge : >50km/charge
Charge time : 4-6H
Charge life : >=500times
Carton size: 145*26*74cm
N. W/G.W : 26kg/29 kg, battery included
Container loading: 20"FCL 96pcs / 40"FCL 215pcs
Extras: Front basket,Helmet,Alarm,Mitten,Rear-view mirror,LCD display,Pedals,Saddles,Tool bag, etc
Our services:
- OEM,ODM service available (Customer's logo,design,manual,colors,components etc.)
- Quick response within 12Hours
- Rich experience in exporting
- Strict QC control
- Long time warranty policy
| ELECTRIC SYSTEM: | OPTIONAL SPECS.: | |
| Battery | Lithium 36V/10AH | 48V, 12-16ah, LiFePo4 |
| Motor | 8FUN Brushless hub 250W | 350-500W |
| Displayer | King-Meter 3 level LED | 5-9 level, DAPU, J-LCD.etc |
| Speed sensor | 6 magnetic points | 12 magnetic points |
| Brake lever | Wuxing Brand Cut-off when braking | Tektro,Promax |
| Light | LED | LCD |
| MECHANICAL SYSTEM: | ||
| Frame | Aluminium 6061 | / |
| Front fork | TGS suspension | OMEGA,RST Angel,SUNTOUR.etc |
| Handle stem | Standard | Adjustable, Mountain style |
| Transmission | Shimano 6 gears | Shimano 7 gears |
| Saddle | Standard | VELO,LOOK IN |
| Saddle post | Foldable | Suspention |
| Tire | KENDA 26*1.95 | KENDA 26*1.75 |
| Mudguard | PVC | Bikeman |
| Rim | Double wall aluminium | Colorful painting |
| Spoke | Stainless steel | Aluminum integrated wheel |
| Crank | Aluminium | Iron |
| Pedal | Wellgo foldable | / |
| Rear rack | Aluminium Option | Iron |
| Brake F/R | Front Disc/ Rear V | Promax, Tektro, ZOOM |
| OTHER: | ||
| Bike length | 187cm | |
| Wheelbase | 120cm | |
| Handlebar width | 60cm | |
| Handlebar height | 105cm-115cm | |
| Saddle height | 85cm-100cm |
FAQ:
Q1. What is electric bike?
Electric bike is very similar to regular bikes,also known as e-bike,with ELECTRIC SYSTEM include brake lever,display,battery,motor,controller and pas sensor.
Q2. Are you exact electric bike manufacturer?
Yes,our factory is located in Jinhua city, Zhejiang Province with convenient trasportation for delivery.
Q3. What type of electric bike do I need?
We have three series (City,Mountain and Folding) covers all range of consumers.You can choose the electric bike according to your taste or make a private customization.
Q4. Can I choose the colors for my bike?
Yes! Customize your ride online according to your personal style, we have seen all sorts of color combinations! Please contact us.
Q5. How about sample electric bike?
Sample is the most intuitive first impression to customers.It is very important to your and us.
If you do not have plan to visit company in a short time,and you are not sure about the product quality and the reliability of P&E vehicle. Purchase a sample in advance is a wise practice,this is one advice P&E to you.
Q6. Can you ship to my country? How much and how long?
We can ship to all the countries around the world via Express,Sea,Air.The shipping charge and time depend on your country,shipping company,shipping line and the size & weight of the package.
Q7. How can I make sure the order is in producing/shipping?
We provide the ORDER TRACKING SYSTEM on our website. You will get a tracking number after order been placed succeed.
Q8. What is the payment?
Sample order and order less than 10pcs, 100% T/T in advance,estimate date 10-15days.
Bulk order,30% deposit in advance, balance see B/L copy, estimate date 25-35days.
Whether you are a wholesaler, agent or retailer to import electric bikes from China. We are the trustworthy and professional exporting manufacturer, will have the right selection for you!
Welcome come to contact us if any models catch your eyes.
