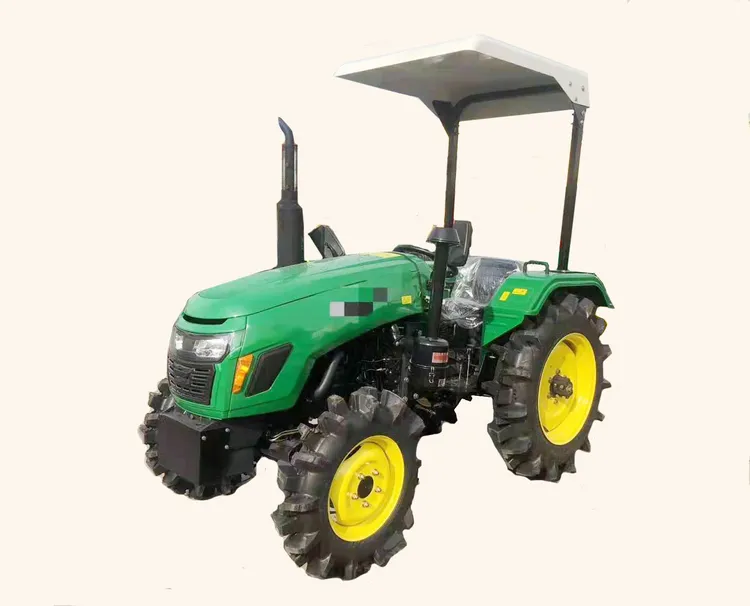

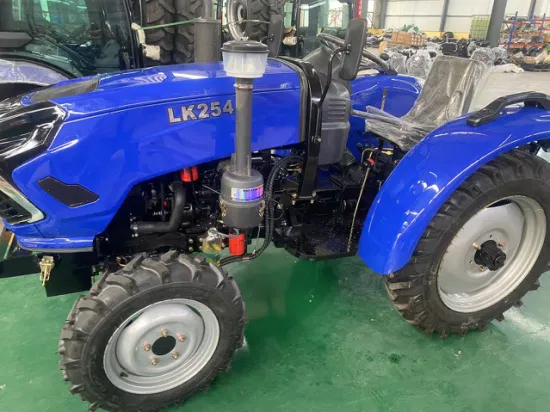

LK Series 25-50HP Tractor :
Simple structure, easy operation and maintenance.
Standard 8F+2R shift.optional 8F+BR shift
Optional reinforced front and rear axles, equipping with constructional implements , such as front loader & backhoe, etc.
Optional flat floor, warm air cab,suitable for cold working conditions.
Optional lawn tires, OTR tires.
Approved by EU EC and North American EPA.
| Model | UNIT | TT254 | TT304 | TT354 | TT404 | TT454 | TT504 | |
| DIMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE(4 x 4) | |||||
| KW | kw | 18.4 | 22.1 | 25.8 | 29.4 | 33.1 | 36.8 | |
| DIMENSION(L x W x H) | mm | 3000*1200*2030 | 3100*1200*2030 | |||||
| WHEEL BASE | mm | 1700 | 1820 | |||||
| MIN.GROUND CLEARANCE | MM | 300 | ||||||
| MIN OPERATING TING MASS | kg | 1300 | 1400 | |||||
| TREAD | mm | FRONT TREAD: 1000(1000~1300)ADJUSTABLE REAR TREAD: 1000(1000~1300)ADJUSTABLE | ||||||
| MATCHED POWER | CLUTCH TYPE | / | DRY-TYPE,Single-ACTING | |||||
| ENGINE | / | 3 CYLINDER | 4 CYLINDER | |||||
| RATED SPEED | r/min | 2400 | ||||||
| WORKING PART | GEAR | / | 8F+2R | |||||
| PTO TYPE | / | 6 SPLINE | ||||||
| PTO RATED POWDER | kw | ≥15.7 | ≥18.8 | ≥22.0 | ≥25.0 | ≥28.2 | ≥31.3 | |
| PTO SPEED | r/min | 760 | ||||||
| HYDRAULIC SYSTEM | THREE POINT MOUNTING | / | REAR, THREE-POINT SUSPENSION, CAT1 | |||||
| HYDRAULIC OUTPUT | / | SIMPLE VALVE | ||||||
| HYDRAULIC ADJUSTMENT MODE | / | INNER HYDRAULIC | ||||||
| MAX.LIFTING FORCE AT FRAME CENTER | kn | ≥4.2 | ≥5.0 | ≥5.9 | ≥7.1 | ≥8.0 | ≥8.9 | |
| TIRE | STANDARD TYRE SIZE (FRONT/REAR) | / | 6.5-16/9.5-20 | |||||
| OPTIONAL TYPE(I) | / | 6.5-16/11.2-24 | ||||||
| OPTIONS | AIR BRAKE | / | OPTIONAL | |||||
| ROPS,SUNROOF | OPTIONAL | |||||||
Iron frame package
8 units in a 40 feet HQ
Shandong Ling ke Industry Group Co., Ltd. is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment.
It was established in 1999. The total planned area of the group is more than 650ha. It is a key investment attraction of the municipal government, a major provincial project, and a priority project for new and old kinetic energy.
Ling ke has always adhered to the two-wheel-driven operation strategy of product management and capital operation, and is committed to creating products with the most three core competitiveness of cost, technology and quality, and has successfully built power machinery, harvesting machinery, construction machinery, financial services, The new pattern of coordinated development of five overseas industrial sectors has formed a complete and competitive industrial chain in the industry.
The annual design and production of 150,000 sets (sets) of mechanical equipment products has exceeded 2 billion yuan in sales revenue in 2020 and is expected to break through 5 billion yuan in 2025.
Q1: What is your payment term ?
A1: We accept T/T,L/C at sight
Q2: How long is the validity of tractor quotation ?
A2: Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately
according to the price fluctuation of raw material and changes in market.
Q3: What is your delivery time ?
A3: Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving
the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45
days,It depend on the order quantity.
Q4: Do you provide tractor OEM/ODM Service ?
A4: Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with
different budgets
Q5: Do you have CE certificate ?
A5: Yes, most of our products have the CE certificate, and 50HP tractor engine with EEC certificate can register in Europe.
Q6: How about after-sales service?
A6:24-hour online response, if there is any problem with the tractor, a solution will be given within 24 hours, video
maintenance teaching will be provided, and damaged parts will be sent free of charge
Q7: How long is the warranty period?
A7:18 months warranty from receipt of tractor.
Q8: What is your tractor MOQ?
A8:1Sets
