1.2T-Spider Crane
on Line or Video
5.8m
2.95t
ISO9001, CE
New
1 Year
Spider Crawler Crane
5.8mx0.8t _
5m × 0.3t _
0-8m/Min
8mm*35m
1.7 M- 5 M/2 2 Sec
0-360° (Continuous)/60sec
Hydraulic Motor Drive, Two-Speed
0-2.5km/H
zhongmei
Standard Export Package or as Your Required
Length 2830*width 800*height 1650
Shandong, China
Product Description
Introduction of 1.2 Ton Lifting Crawler Crane Small mIni Spidercrane Foldable Telescopic Construction Spider Crane
The price of the spider crane is calculated according to the configuration of the car. The spider crane is miniature design, small in size and strong in lifting capacity. Reasonable design, simple operation, easy to learn and understand, zero work pressure. Use wireless remote control or body switch to operate, the operation is fast.
The spider crane adopts rubber crawler type hydraulic traveling device, and the hoisting, telescopic, heave and rotation devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of 3D modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance.
This machine is suitable for working in narrow places where large cranes cannot be deployed. This is one of the most popular applications of spider cranes, which can shorten construction periods and reduce costs by avoiding the use of expensive tower cranes.zmwm21
The spider crane adopts rubber crawler type hydraulic traveling device, and the hoisting, telescopic, heave and rotation devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of 3D modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance.
This machine is suitable for working in narrow places where large cranes cannot be deployed. This is one of the most popular applications of spider cranes, which can shorten construction periods and reduce costs by avoiding the use of expensive tower cranes.zmwm21
Parameters of 1.2 Ton Lifting Crawler Crane Small mIni Spidercrane Foldable Telescopic Construction Spider Crane
| Specification | 1.2t | |
| Maximum working radius | 5m × 0.3t | |
| Maximum ground lift | 5.8mX0.8t | |
| Winch | Hook up speed | 0-8m/min |
| Wire Rope Specifications | Φ8mm × 35m | |
| Telescopic device | Boom form | 4 -section boom , U-shaped high-strength manganese |
| Boom length/time | 1.7 m- 5 m/2 2 sec | |
| Undulating device | Boom angle/time | 0-7 5 °/13sec |
| Outrigger | Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) |
| Maximum extension (mm) | 3800 (L) X 3000 (Rear) , (Front) | |
| Walking device | Way of walking | Hydraulic motor drive, two-speed |
| Walking speed | 0-2.5km/h | |
| Gradeability | 20° (36%) | |
| engine | Producer | gasoline |
| Type/displacement | 9.6kW | |
| Start method | Electric start | |
| Startup performance | -5°C~40°C | |
| fuel/volume | Gasoline / 8 L | |
| battery capacity | 12v 45AH | |
| Fuel consumption | 274g/kW-h | |
| Operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) |
| Operating characteristics | Comai hydraulic system (optional) | |
| The standard configuration | Engine power | |
| Vehicle size | Length 2095*width 600*height 1393 | |
| Craftsmanship | Paint assembly process | |

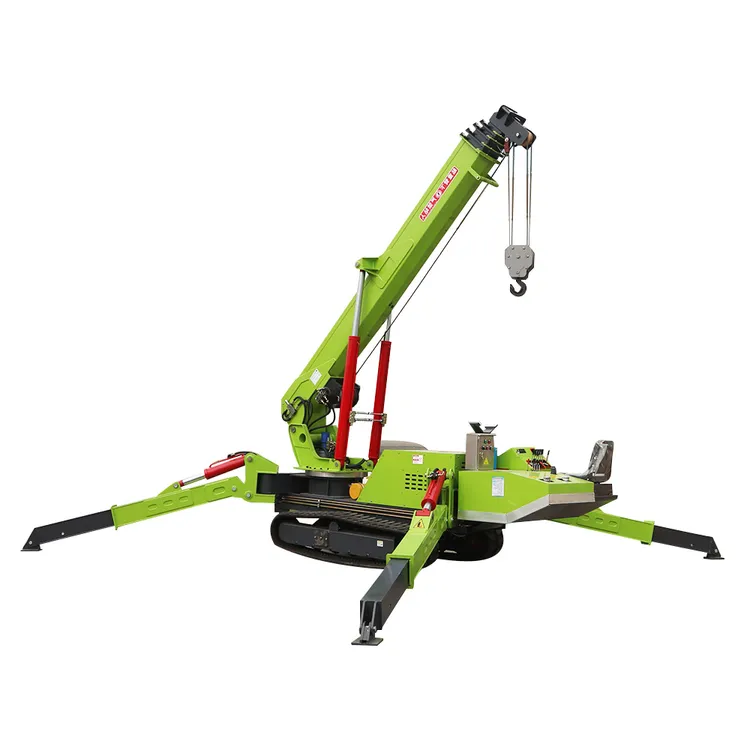

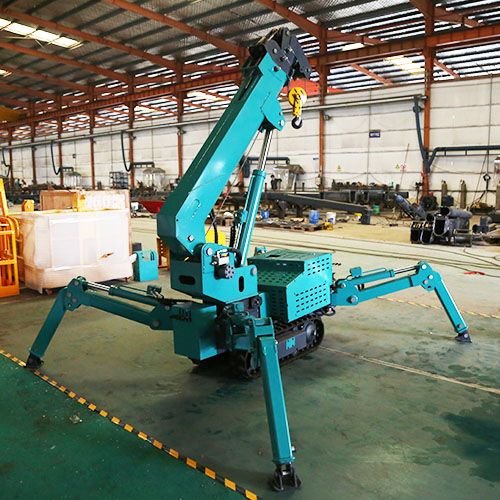

Photo of 1.2 Ton Lifting Crawler Crane Small mIni Spidercrane Foldable Telescopic Construction Spider Crane
