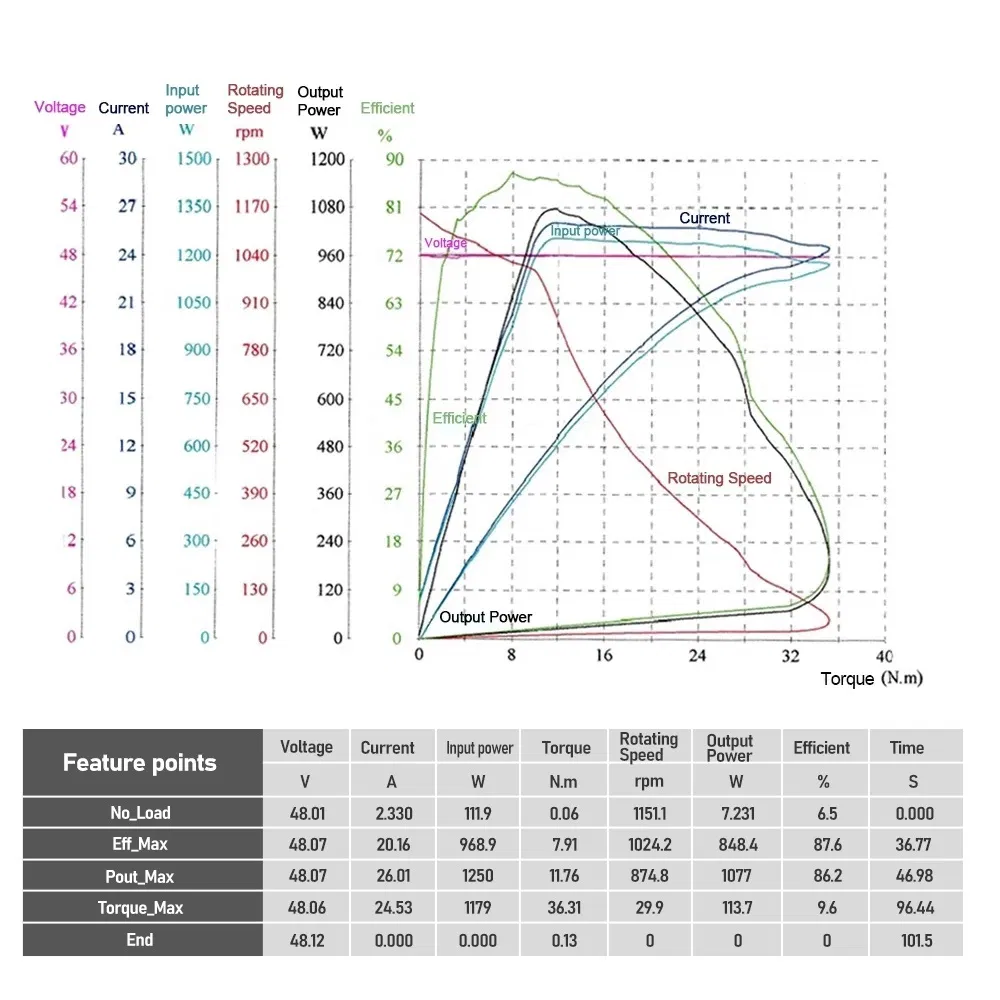

Motor model: LY-10
Rated Current: 36V/48V
Power: 350W,500W,600W,800W,1000W
Pole: 15
Magnet height:38H
Speed: 30-65KM/H
Shaft length: 160MM
Applicable models: 10-inch scooter
Open Size: 110MM
Outer diameter:168MM
Width: 40MMColor: Black
LCD display wiring:
1. Red wire (D+): power supply positive input
2. Black wire (GND): negative pole of power supply
3. Blue line (DS): Controller electric door lock
4. Green wire (RX): communication reception
5. White line (TX): communication transmission
Display function:
Speed display, battery indicator, fault indicator, headlight indicator, cruise indicator, gear indicator, total mileage, single mileage
Real-time voltage, running current, running time, start mode
Parameter setting and definition:
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;
P05: Power-assisted drive gear setting
P06: Wheel diameter: unit, inch; precision: 0.1;
P07: Number of speed magnets: range: 1-100;
P08: Speed limit, the maximum operating speed of the motor
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P10: Drive mode setting 0 Power-assisted drive 1 Electric drive 2 Power-assisted drive Electric drive coexistence
P11: Assist sensitivity setting 1-24
P12: Starting torque: range: 0-5, 0 is the weakest, 5 is the strongest;
P13: Magnet type setting of booster plate 5 8 12
P14: Controller current limit value setting Default 12A range: 1-20A; (requires controller software support)
P15: Motor drive signal percentage setting (to achieve the speed limit function of PO8) full speed is set to 100
P16: Instrument real-time cruise function 1 With this function 0 Without this function
P17: Headlight synchronization function 1 Headlights and backlight do not light up after turning on 0 Headlights and backlight light up after turning on
P18: Power-on password selection function 1 With this function 0 Without this function
P99: One-key recovery function (in the P99 parameter setting interface, press and hold the MODE key for 5-6 seconds, and all parameters will be restored to the first
Initial settings for the second boot)
ODO: ODO clear (in the ODO parameter setting interface, first short press the MODE button and then long press for 5M-6 seconds until the number is zero, release
