Model NO.
TSGB03
GSM Network
2g /3G
Operating Ambient Temperature
-20 ~70 Degrees
Send E-Messages
Support
Remote Disable Motor
Support
Hand-Free Phone
Support
Compass Detection
Support
Transport Package
One Controller One Box
Specification
160 * 63 * 37 mm
Trademark
Topshine (supported OEM/ODM)
Origin
China
HS Code
8517691090
Production Capacity
10, 000/Month
After-sales Service:
Forever
Warranty:
One Year Warranty
Type:
Controller with Bluetooth
Software:
Free GPS Tracking Platform
Voltage:
5V
Battery Capacity:
2, 500mAh
DIY Electric bicycle parts 18A controller with Bluetooth upload data
(*Built in GPS module *Free GPS tracking platform *Bluetooth controller *Remote disable motor *Stereo HIFI speaker *Customer management system)
| Details of controller | |
| Product Name | controller TSGB03 |
| Voltage | 36V/48V |
| Mosfet | 6 Mosfet 9mosfet and 12mosfet |
| connector | customized |
| Functions | Power assist system, Stepless Power assist system; Inertial Cruise system |
| Details of motor | |
| Rated voltage | 36v /48v |
| Power | 250w/350w/500W |
| Color | Black/silver |
| Wheel size | 20" / 26" / 27.5" |
| RPM | 230~330RPM |
| Max speed | 38km/h |
| Efficiency | 80% |
| Weight | 3.5kg |
| Cable location | Shaft senter |
| Integrated speed sensor | Yes |
| Hall sensor | Yes |
| Warranty | 1 year |
E-bike speedometer TSGB02 (GPS + LCD Display + Bluetooth Speaker )

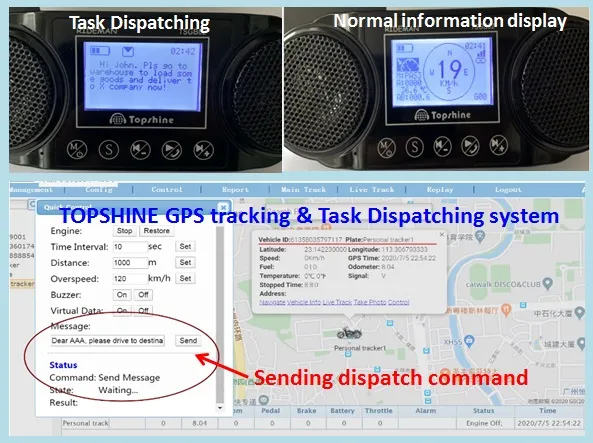

GPS Tracking:
Real time tracking by smartphone or computer anytime anywhere.
Stereo Bluetooth Speaker:
Play music by connecting to Smart Phone Bluetooth;SD card for MP3 play voice etc.
LCD display:
It can display battery capacity, height, speed, compass, time, GSM signal, GPS tracking platform connection status, number of satellite connections, total mileage, ambient temperature, etc
Key Features
1. Stereo HI-FI speaker
2. Built in 2500mAh battery
2. MP3/Bluetooth player selection
3. Hand-free phone
5. Online GPS tracking
6. Electronic compass
7. Remote Disable motor function
8. Receive and showing e-Message on the LCD
9. Time, Date and Alarm clock function
10. Real time ambient temperature detection
11. Real time altitude detection
12. Remote e-bike diagnosis
13. Local diagnosis show on LCD
14. Check latitude and longitude on LCD

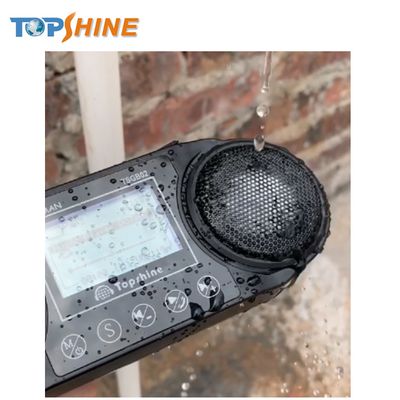

15. Touch keyboard instead of traditional mechanical keyboard to extend service life of the keyboard and good waterproof
16. Trip Riding time and History Riding time report
17. Trip Odometer and History Odometer report
18. Max speed and average speed report
19. Remotely lock motor and receive E-Message
20. Two-way conversation
21. customer management systems: User can send all kinds of information to their customers through Topshine tracking system, such as holiday greetings, birthday wishes, product promotions, etc. At the same time, it can also help other stores push some advertisements and other information.
| Details of speedometer | |
| Product | TSGB02 |
| Size | 160 * 63 * 37 mm |
| Shell material | ABS |
| Liquid crystal transparent window panel material | imported high hardness acrylic, hardness value is equivalent to tempered glass |
| Process customization | Yes |
| Voltage | 5V |
| Rated working current of instrument | 30mA |
| Shutdown leakage current | <1uA |
| Temperature when the instrument is in use | <30ºC |
| Operating ambient temperature | -20ºC ~ 70ºC |
| Data refresh frequency | 1s |
Main interface function display
E-bike odometer can show a lots of info, such as: riding state, riding mode, altitude, battery capacity, speed, compass, time, GSM signal,GPS tracking platform, light, number of satellite connection, enviroment temperature, total mileage.
Payment & Shipment:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1) Delivery time:
- Samples within 1-4 days of delivery, bulk production within 5-20days to delivery.
2) Packing:
-One set per standard export carton
-According to customer's request.
3) Warranty:
-Frame Warranty against manufacturer defects, 1 year
-Components Warranty against manufacturing defects, 1 year
- Samples within 1-4 days of delivery, bulk production within 5-20days to delivery.
2) Packing:
-One set per standard export carton
-According to customer's request.
3) Warranty:
-Frame Warranty against manufacturer defects, 1 year
-Components Warranty against manufacturing defects, 1 year
4) Shipping Term:
- Express / Air / railway / sea transportation
5) Payment Term: PayPal /Western union /TT / ALIBABA
