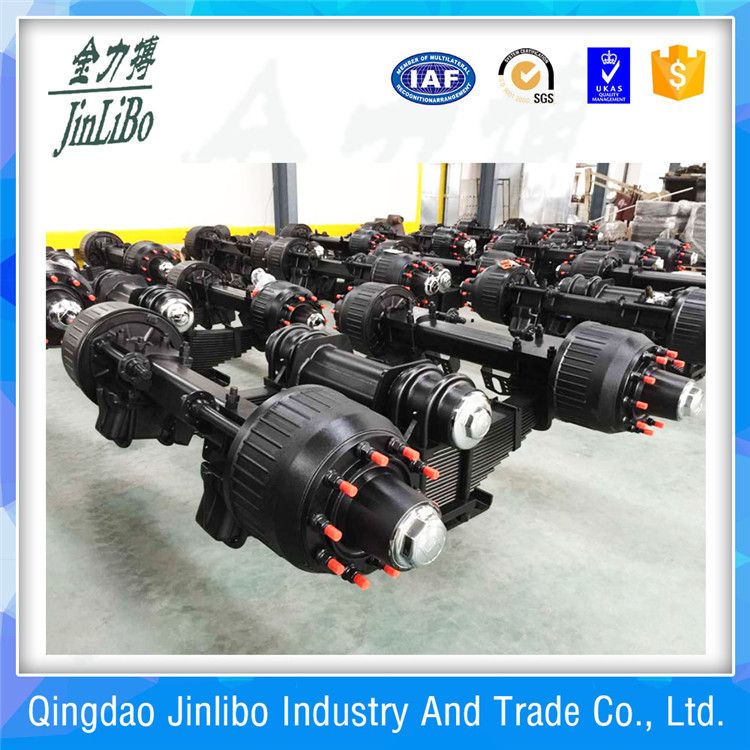

Factory Manufacture Trailer Parts of Germany Type Bogie Suspension, Bogie Suspension, Axle

Product detail

Model NO.

bogie suspension

Bearing

32314 32222

Axle Tube

Squre 150X16

Brake Size

420X200

Tracke Length

1870mm

Type Stubs

10-M22X1.5

Transport Package

Trademark

Origin

China

Production Capacity

50000PCS/Month

Condition:

Axle Number:

Application:

Trailer

Certification:

Material:

Steel

Type:

Rear Axles

Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
9. Through ISO9001: 2015 certification and ISO/TS16949 we faithfully follow the stipulations of this standard
So as to guarantee high product quality.

Germany Type Bogie Suspension
Rated Load (kg)	Weight (kg)	Bearing Type	Axle Beam	Brake Size	Track Length A	P.C.D.	Tyre Bolt	Steel Turn Position	Wheel Base B	C mm	D mm	E mm	F mm
24000	2020	33118 33213	SQUARE 150*14	420*180	1870mm	335	10-M22*1.5	280	1385	900	600	700	55
24000	2080	33118 33213	SQUARE 150*14	420*200	1870mm	335	10-M22*1.5	280	1385	900	600	700	55
28000	2455	33215 32219	SQUARE 150*14	420*200	1870mm	335	10-M22*1.5	280	1550	900	600	800	55
32000	2520	32314 32222	SQUARE 150*16	420*200	1870mm	335	10-M22*1.5	280	1550	900	600	800	55
36000	2600	32314 32222	SQUARE 150*18	420*220	1870mm	335	10-M22*1.5	280	1550	900	600	800	55
