Model NO.
ZJ
Welding Positioner Rotate Speed
0-90rpm/Min
Vertical Loading Weight
300kg
Motor
Stepper Motor
Welding for
Circular Seam Welding Machine
Welding Mode
TIG MIG Mag Saw
Welding Material
Stainless Steel, Carbon Steel etc
Lead Time
15 Days
Exported to
Canada, USA, Greece
Optional
Welder Source
OEM
Can
Colour
Customized
Transport Package
Container Packing
Specification
ISO 9001: 2008
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8468800000
Production Capacity
2000PCS/Year
Cooling Way:
Air Cooling
Control:
Automatic
Name:
Automatic Flange Welding Machine
Input Power:
220V
Horizontal Loading:
600kg
Positioner Tilt:
0-90 Degree
Automated Pipe Flange Circular seam welding machines
The pipeline transportation business uses automatic welding machines most frequently.
Material for welding: Carbon steel and stainless steel,etc.
Using MIG, TIG, or SAW for welding. MIG and SAW welding capabilities can both be used on the same machine.
The full set of arc welding circular seam automatic welding products include:
Welding turing positioner
3 Jaw or Customized welding chuck
Pneumatic gun lowering mechanism
Two-dimensional fine-tuning slide table
Straight handle welding torch
Flexible wire filling mechanism feeder
Argon arc welding wire feeder
Argon arc welding machine(tig mig saw mag)
Welding torch swing
Manual operation machine.
The welding positioner, chuck, and argon arc welding machine can be matched with corresponding models and specifications according to the size requirements of the workpiece.
The pipeline transportation business uses automatic welding machines most frequently.
Material for welding: Carbon steel and stainless steel,etc.
Using MIG, TIG, or SAW for welding. MIG and SAW welding capabilities can both be used on the same machine.
The full set of arc welding circular seam automatic welding products include:
Welding turing positioner
3 Jaw or Customized welding chuck
Pneumatic gun lowering mechanism
Two-dimensional fine-tuning slide table
Straight handle welding torch
Flexible wire filling mechanism feeder
Argon arc welding wire feeder
Argon arc welding machine(tig mig saw mag)
Welding torch swing
Manual operation machine.
The welding positioner, chuck, and argon arc welding machine can be matched with corresponding models and specifications according to the size requirements of the workpiece.
| Name | TIG MIG Pipe Flange welding machine |
| Loading weight | 600kg or customized |
| Welding torch up and down stroke | 1000mm |
| Welding torch left and right stroke | 500mm |
| Welding positioner hole diameter | 240mm |
| Flip angle | 0-90° |
| Flip mode | Manual |
| Chuck clamping range | 20-650mm |
| Arc pressure adjustment | 100mm |
| Wire feeder wire diameter | 0.8/1.0/1.2/1.6mm |

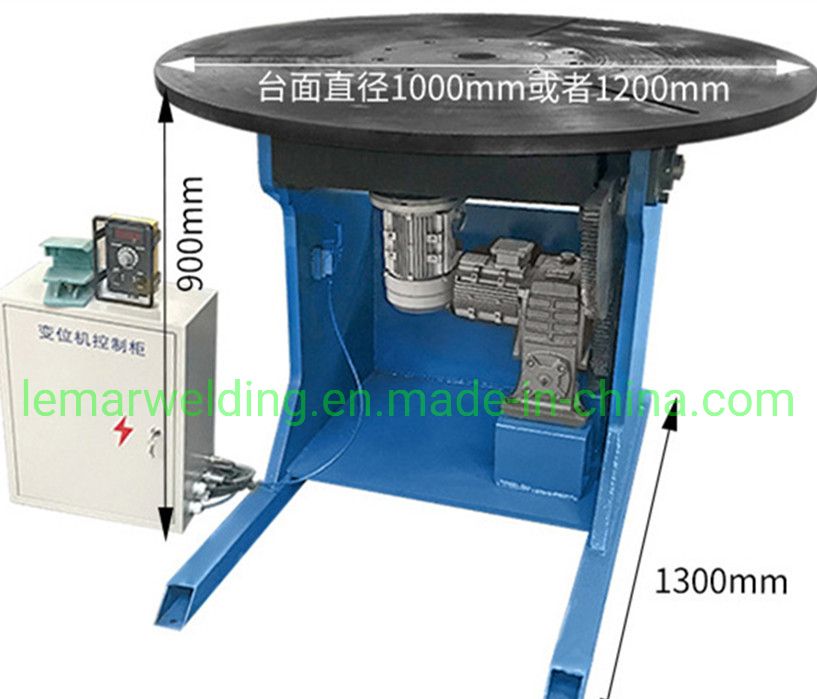

CNC positioner features:
This positioner can realize three welding modes: spot welding-intermittent welding-continuous arc welding.
It is convenient to switch between the three modes, and the operation is simple and easy.
This welding positioner is equipped with the function of setting the arc start/stop time of the welding torch.
When turntable is linked with the welding machine, it can set the lag time of the positioner linkage and the arc stop time when the welding is stopped according to the actual needs, and can realize the synchronous linkage of multiple welding torches at the same time.
The Automatic arc welding positioner can conveniently realize the automatic lifting function of the welding torch, and the user can complete the whole set of functions of lowering the torch-arc starting-rotary welding-arc ending-lifting the torch without operating the welding torch lifting device alone.
This positioner can realize three welding modes: spot welding-intermittent welding-continuous arc welding.
It is convenient to switch between the three modes, and the operation is simple and easy.
This welding positioner is equipped with the function of setting the arc start/stop time of the welding torch.
When turntable is linked with the welding machine, it can set the lag time of the positioner linkage and the arc stop time when the welding is stopped according to the actual needs, and can realize the synchronous linkage of multiple welding torches at the same time.
The Automatic arc welding positioner can conveniently realize the automatic lifting function of the welding torch, and the user can complete the whole set of functions of lowering the torch-arc starting-rotary welding-arc ending-lifting the torch without operating the welding torch lifting device alone.
