LSAZ-95
Float
Contact
Digital Type
Integration
Plastic
IP65
CE
Customized
Float
Contact
Switching Type
Normal Wirewound
Conductor
Stainless Steel
IP67
CE
Customized
SUS304
External Horizontal Mounting
±2mm
±1mm
70va
Yuanben
Carton
Shanghai
9026100000
Product Description
SUS Float Level Switch
Yuanben offers a complete line of standard level sensors and configured models, These products continue to meet the needs of applications in aborad markets, at competitive prices, also Yuanben Company offers the capability to design specific liquid level switches for OEM applications that require considerations in materials such as PP, NBR, PVDF, Nylon, SUS304, SS316L, configurations and system interfacing. We have 20 years of experience in liquid level switch applications in a variety of environments and installation configurations. High reliability of the mangentic reed switch assures repeatability at an economical price. Our design experience and flexible manufacturing techniques also offer customers many value added design and sssembly options to reduce their product cost.
Since technologies of the product have become more and more advanced, the products need comply with a requirement for more safe, convenient and low cost. The float switches are extremely compact, simple and are easy to install on any small space. These switches are not effected by electrical interference. They can withstand to chemicals, high remperatres and pressures if the correct material of float switch is selected by the customers.
Principle
Float level switch is consist of a magnetic float, unit stem with magnetic reed switch, the mangentic float moves with liquid level to actuate a hermetically sealed mangetic switch within the unit stem. The level switches are usually used for high or low alarm vessels. Multi-point level switches, the design is according to sustomers' specifications.
Specifications

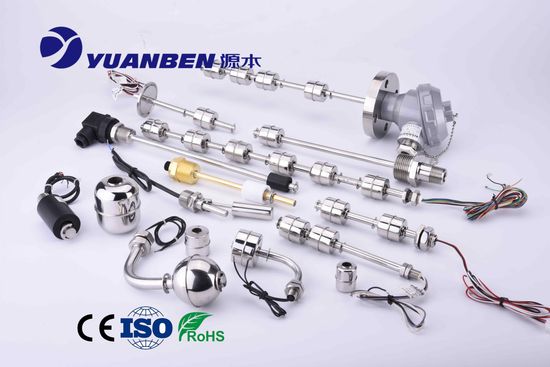

Photos
Yuanben offers a complete line of standard level sensors and configured models, These products continue to meet the needs of applications in aborad markets, at competitive prices, also Yuanben Company offers the capability to design specific liquid level switches for OEM applications that require considerations in materials such as PP, NBR, PVDF, Nylon, SUS304, SS316L, configurations and system interfacing. We have 20 years of experience in liquid level switch applications in a variety of environments and installation configurations. High reliability of the mangentic reed switch assures repeatability at an economical price. Our design experience and flexible manufacturing techniques also offer customers many value added design and sssembly options to reduce their product cost.
Since technologies of the product have become more and more advanced, the products need comply with a requirement for more safe, convenient and low cost. The float switches are extremely compact, simple and are easy to install on any small space. These switches are not effected by electrical interference. They can withstand to chemicals, high remperatres and pressures if the correct material of float switch is selected by the customers.
Principle
Float level switch is consist of a magnetic float, unit stem with magnetic reed switch, the mangentic float moves with liquid level to actuate a hermetically sealed mangetic switch within the unit stem. The level switches are usually used for high or low alarm vessels. Multi-point level switches, the design is according to sustomers' specifications.
Specifications
| Item | Technical Data |
| Model | LSAZ-95 |
| Mount mode | external Horizontal Mounting |
| Mounting Threads | NPT1/2" + NPT1/2" |
| Operating Temp. Range | -30ºC~125ºC |
| Operating Pressure | 2.5Mpa |
| Special Gravity | 0.85g/cm3 |
| Electrical connection | 300mm length UL1430 AWG22 |
| Float model | Dia.17, Length 47 |
| Stem Material | SUS304 |
| Float ball Material | SUS304 |
| Accuracy | ±2mm in Water |
| Repeatability | ±1mm in Water |
| Switch Rating | 70VA |
| Voltage | 250Vac, 200Vdc |
| Contact Mode | N.C./N.O |
| Control point | One point |
| Product Certified | EX, CQC,CE |
Photos
