PF002T
Plate Ring Type
Piezoelectric
5 Wires
Analog Type
High Accuracy
Piezoelectric
Stainless Steel
IP65
RoHS
Customized
1/5/10/20/25kn
BRANS
Carton Box
20*8*3.5*(D*d*H)
China
8423900000
Product Description

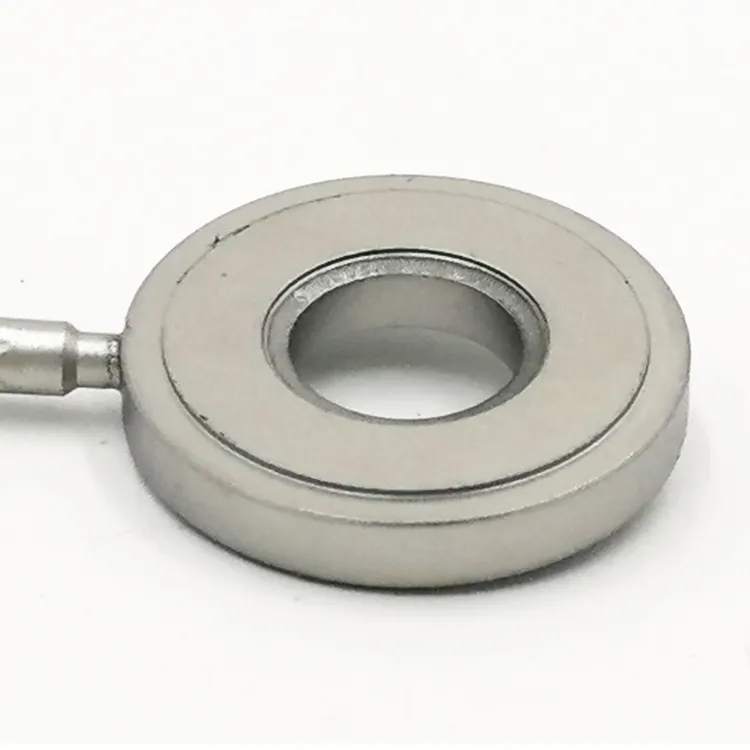

Mini Donut Compression Piezoelectric Load Cell 1/5/20/25kN (PF002T)
Quartz piezoelectric force and strain sensors are highly reliable, and they have outstanding dynamic force and strain measurement characteristics. Typical measurements include dynamic and quasi-static forces during driving, compression, impact, impulse, reaction force and tension.
Since the measurement signal generated by the quartz sensor will decay over time, long-term static force measurement is not feasible. However, short-term or quasi-static measurements are advisable within a certain time limit, depending on the sensor and signal offset meter used..
Features
·strong and sturdy
·small volume
·high strength
·Detect small force changes under large static load
·reusable
·Wide dynamic range
·Fast rise time
·Wide frequency range available
Application:
·Hemming, stamping and extrusion monitoring
·Mechanical installation force
·Mechanical impedance test
·Material testing
·Tablet presses and punches
·Roll Milling Machine
·Knife balance
·Limited Vibration
Datasheet
Quartz piezoelectric force and strain sensors are highly reliable, and they have outstanding dynamic force and strain measurement characteristics. Typical measurements include dynamic and quasi-static forces during driving, compression, impact, impulse, reaction force and tension.
Since the measurement signal generated by the quartz sensor will decay over time, long-term static force measurement is not feasible. However, short-term or quasi-static measurements are advisable within a certain time limit, depending on the sensor and signal offset meter used..
Features
·strong and sturdy
·small volume
·high strength
·Detect small force changes under large static load
·reusable
·Wide dynamic range
·Fast rise time
·Wide frequency range available
Application:
·Hemming, stamping and extrusion monitoring
·Mechanical installation force
·Mechanical impedance test
·Material testing
·Tablet presses and punches
·Roll Milling Machine
·Knife balance
·Limited Vibration
Datasheet
| Static parameters | ||
| 1 | Capacity | 0~1/5/10/20/25kN |
| 2 | Charge sensitivity | ~4pC/N |
| 3 | Overload capacity | 200%F.S. |
| 4 | Non‐linearity | 1%F.S. |
| 5 | Hysteresis | 1%F.S. |
| 6 | Repeatability | 1%F.S. |
| 7 | Capacitance | ~20pF |
| 8 | Insulation resistance | > 1012Ω |
| Dynamic parameters | ||
| 9 | Resonance frequency | >40kHz |
| 10 | Operating temperature range | -54~+120 ºC |
| Physical parameter | ||
| 11 | Weight | 5.8g |
| 12 | Shell material | High-strength stainless steel |
| 13 | Installation | Through hole φ8 |
| 14 | Sensitive material | Quartz |
| 15 | Output mode | Side L5 plug |
| 16 | Connecting cable | 2m double-headed L5 low-noise cable |
More Sizes and Capacities:
| Capacity(kN) | Resonance frequency(kHz) | Weight(g) | Installation(through hole) | A | B | C |
| 5 | 75 | 4.5 | 4 | 13 | 7.5 | 4 |
| 15 | 70 | 5.6 | 6 | 14.5 | 7.5 | 6 |
| 35 | 60 | 17 | 10 | 24 | 10 | 10 |
| 60 | 50 | 32 | 13 | 28.5 | 11 | 13 |
| 100 | 40 | 90 | 20 | 43 | 14 | 20 |
| 200 | 30 | 130 | 26.5 | 52.5 | 15 | 26.5 |
| 300 | 25 | 370 | 27 | 70 | 20 | 27 |
| 600 | 15 | 750 | 40.5 | 95 | 23 | 40.5 |
| 1000 | 8 | / | 66 | 145 | 28 | 66 |
| 2000 | 5 | / | 66 | 170 | 36 | 66 |
