MW-300
Video Technical Support, Online Support, Spare PAR
1 Year
ISO9001/CE
New
DC Motor
150-200mm
100-150m
Diamond Bit/ Cone Bit/ Drag Bit
Impactor
Crawler
4100*1950*2600mm
17-35 M3/Min
40-70 Rpm
1. 5 M,2.0 M.3m
Low Maintenance Cost
75.8kw
76mm,89mm.102mm
MININGWELL
Carton
4100*1950*2600mm
Zhejiang, China
Product Description
Advantages
1. deep drilling
2. fast footage
3. flexible movement
4. suitable for industrial and civil drilling
5. geothermal drilling, with large diameter

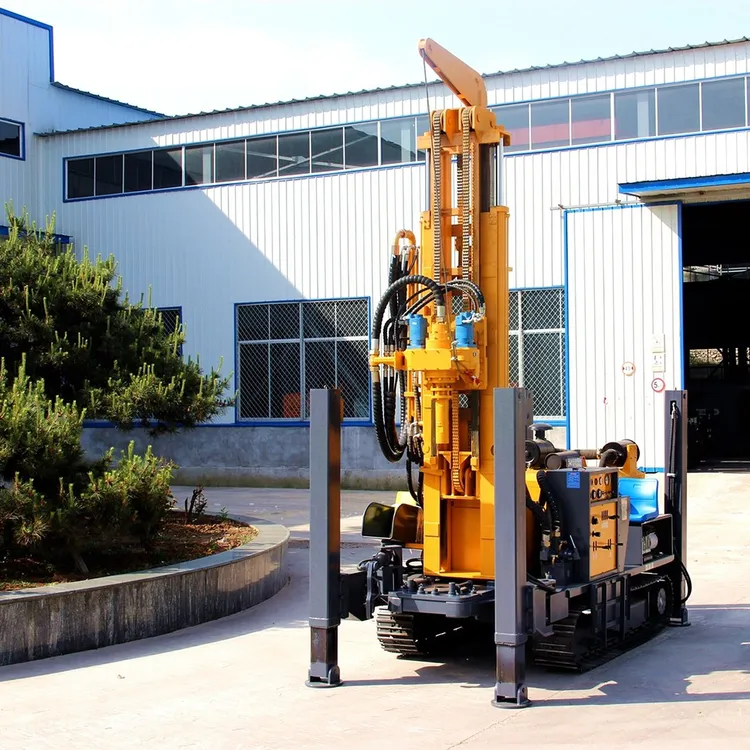

Technical Parameters of MW300 Crawler type water well drilling rig | |
type | MW300 |
The weight | 9T |
Dimension | 4100*1950*2600mm |
The hole diameter | 140-325mm |
Drilling depth | 300m |
One-time advance length | 6.6m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | 85KW |
Using air pressure | 1.7-3.3MPA |
Air consumption | 17-35 |
Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
Drill pipe diameter | 89mm,102mm, |
Rig lifting force | 20T |
Swing speed | 55-115rpm |
Swing torque | 6200-85000N.m |
